SWIT S-2430C Bi-Color Studio Panel LED Light

Price/Day: EGP. 250

Color Temperature: 3200 - 5600K - 25 x 17.3 x 3.26" Panel - 10-100% Flicker-Free Dimming - Onboard DMX - Beam Angle: 70 Degrees - Included AC Power Adapter - Optional V-Mount Battery Power - CRI: 93, TLCI: 97 - Metal Housing, Thin Design.

Product Details

Overview

The S-2430C Bi-Color Studio Panel LED Light from Swit is a low-profile fixture with a thin 3.26" metal design and a 70-degree beam angle for wide coverage that can be contoured and controlled by the included 4-way barndoors. Color temperature is variable from 3200 - 5600K or anywhere in between to match prevailing ambient light conditions, other fixtures, or to work creatively without resorting to filters. The high CRI: 93, TLCI: 97 rating ensures the accurate rendition of color. Light intensity is also variable from 10-100% without flicker. Both functions can be adjusted on the fixture or remotely via onboard DMX. Your settings are displayed on the large, easy-to-read LCD screen on the back of the fixture. The S-2430C runs on 100-240 VAC for worldwide use thanks to the inclusion of an AC adapter, but it can also run on V-mount batteries via the battery plate on the rear of the light.


1152 Surface Mounted LEDs
The S-2430C Studio Panel LED Light employs surface mounted LED technology and includes 1152 bright LEDs. The built-in diffuser generates an even 70° beam spread for effective wide coverage which is an ideal for broadcast studio and field video productions.
Bi-Color Temperature
Color temperature can be continuously adjustable between 3200 and 5600K or anywhere in between.
High Output, Low Power Draw
The S-2430C consumes 100W of power, produces 2500 lux @ 3.3' (1.0 m) and supports smooth 10 to 100% digital dimming without flicker.
Highly Accurate Color Rendering: CRI: 93, TLCI: 97
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is a special rating for color revealing ability by the camera sensor. 100 is the maximum rating.
DMX512 Control
The S-2430C adopts a standard 5-pin DMX In/Out port, supports DMX512 protocol, and adjusts dimming and color temperature by a DMX controller.

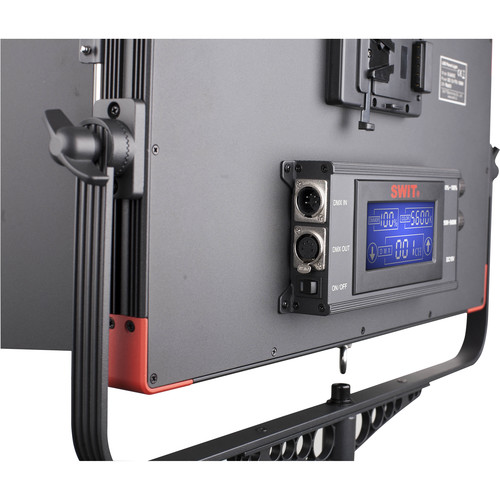

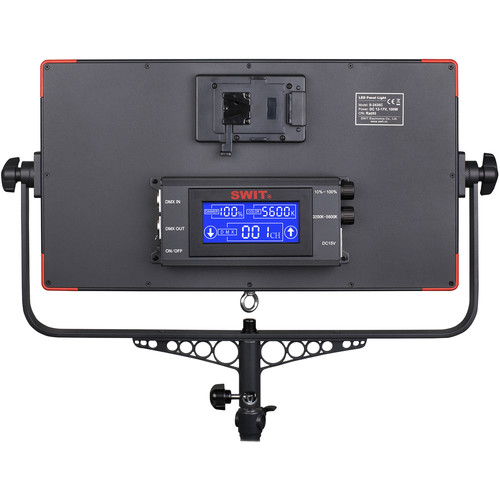

LCD Screen Display
The rear LCD screen can display the current dimmer percentage and color temperature value and supports touch control to set DMX addresses.
DC 12-17V Power Supply
The light supports a 12-17V 4-pin XLR DC input and is equipped with a battery plate to power it by V-mount battery or by the included AC adapter.

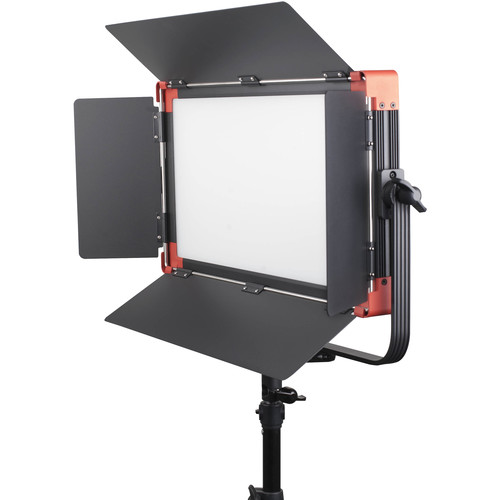

4-Way Barndoors
Snap-on metal 4-way barndoors allow you to light the areas that you want to and keep light from areas where you don't want it.
U-Shaped Bracket with 2 Security Cables
The S-2430C is supplied with a U-shape bracket for mounting on a stand or hanging from the ceiling. Two steel security cables secure the fixture and the bracket, preventing accidents.

Specifications

Light Source 1152 LEDs
Color Range 3200K (+/-300K) to 5600K (+/-200K)
CRI / TLCI CRI: 93, TLCI: 97
DMX Yes (5-pin DMX In/Out port)
Dimming 10 - 100%
Beam Angle 70°
Photometrics 2500 lux @ 3.3' (1.0 m)
Operating Voltage Working voltage: DC12V - 17 V
AC adapter: 100 - 240 VAC, 50/60 Hz
Battery Optional V-mount
Power Consumption 100 W
Mount 16 mm Stand mount
Dimensions Overall:  630 x 440 x 83 mm
Illuminated Area:  477 x 237 mm
Weight 5.8 kg

Includes

SWIT S-2430C Bi-Color Studio Panel LED Light
AC Power Adapter with 90-Degree 4-Pin XLR
U-Shaped Bracket
Four-Way Barndoors
5-Pin DMX Cable
2 x Steel Security Cables
