Profoto B1X 500 AirTTL
1 x B1X 500 AirTTL OCF Monolight - 2 x Li-Ion Battery Mk II for B1 and B1X - 1 x Battery Charger 2.8A - 1 x Bag XS - LED Modeling Lamp (130W Equivalent) - Better Battery: 325 Full-Power Flashes - Full 9-Stop High-Speed Sync Power Range . Flash Duration: 1/19,000 - 1/1000 Sec 0.1 - 1.9 Sec Recycling

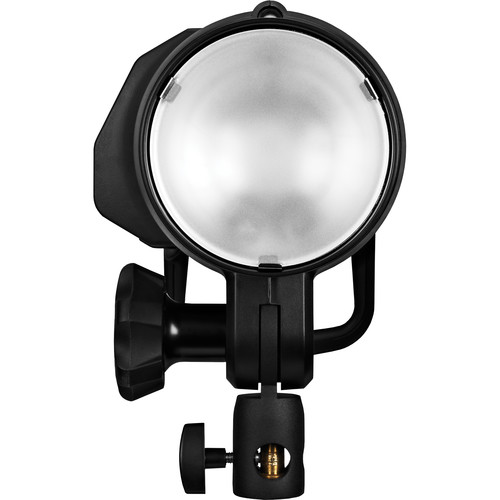

Profoto continues to impress and surprise us, this time with an enhanced version of the B1 battery-powered monolight, the B1X, introduced with the B1X 500 AirTTL 1-Light To-Go Kit with an improved battery that will give you an impressive 325 full-power flashes. All of the familiar professional and convenience features we've come to expect from Profoto are onboard. The B1X has the same dense, durable polymer housing, integrated 77-degree reflector, built-in receiver compatible with Air Remote TTL remotes and intuitive highly visible controls and display.
While it's possible to trigger the flash via its optical slave or hard-wired to its 3.5mm sync port, AirTTL remotes are made for Nikon, Canon, Sony, and Olympus cameras. Busy photographers can literally set up their lights, slip the optional Air Remote TTL-C, TTL-N, TTL-S, or TTL-O remote onto their camera's hot shoe and point-and-shoot without using precious time taking readings and testing.
The (separately purchased) remote is the key to this convenience and control. Operating on 2.4 GHz band width, the remote, really a controller, has 8 frequency channels and with 3 groups per channel and a range of up to 330' for TTL triggering and 1000' for normal non-TTL triggering. Each channel has power ratio capability of +/- 2 stops. If you prefer to use manual you have +/- 9 stops power variation. You've also got modeling light, unit shut-down, and first or rear curtain control. The AirTTL remotes have mini-USB connectors for firmware updates directly from Profoto's website. The B1X's core performance features are equally impressive. The B1X recycles in 0.1 to 1.9 seconds but can deliver up to 20 flashes per second in Quick Burst Mode which engages at lower power settings. Flash duration in Normal Mode is a very fast 1/1000 sec but there's also a Freeze Mode that delivers flash durations as short as 1/19,000 sec for capturing liquid sprays or splashes and other creative effects.
The B1X is also capable of High Speed Sync. HSS is the technical term for syncing flash with shutter speeds shorter than the so-called x-sync, typically 1/250 of a second. It's a useful tool for controlling ambient light and for freezing action. Profoto uses a patent-pending technology that emits an extremely fast series of flash pulses. A simple button-press activates HSS Mode allowing you to shoot at shutter speeds as fast as 1/8000 of a second. As mentioned above, the B1X 500 AirTTL employs an improved, high-capacity, exchangeable lithium-ion battery that gets up to 325 flashes on a 2.5-hour charge with the included 2.8A charger or a 1.5-hour charge with an optional 4.5A quick charger. The battery has fuel gauge-type LEDs that make monitoring remaining power easy. The B1X's modeling light is LED to put less strain on the battery. It provides the equivalent output of a 130W halogen bulb and will run for 120 minutes on a full charge.
Finally, B1X's back panel features a large, bright LCD screen that informs the user of the flash's power level, radio channel and group, sync choice, modeling light mode and recycle alert. There's also a large battery gauge that is very easily read.
The B1X 500 TTL comes with a protective cap, 2.8A charger, and a soft case.
Full TTL with Canon, Nikon, Sony, and Olympus Cameras
The B1X's patent-pending technology fully integrates the flash head with your Canon, Nikon, Sony, or Olympus camera. The integration is so complete that Profoto sometimes refers to the B1X as an "off-camera flash." The key to this control is the Air Remote TTL.
Optional Air Remote
The Air Remote TTL transmitters have 8 frequency channels with 3 groups per channel and a range of up to 330' for TTL triggering. Each channel has power ratio capability of +/- 2 stops in TTL or +/- 9 stops in manual. Modeling light, shut-down of the unit and first or rear curtain exposure can also be selected.
Both the flash head and the Air Remote have mini-USB connections for firmware updates directly from Profoto's website.
High Speed Sync as Fast as 1/8000 Sec
High-Speed Sync (HSS) is the technical term for syncing flash with shutter speeds shorter than the so-called x-sync - typically 1/250 of a second. It is a useful tool for controlling ambient light and for freezing action. Profoto uses a unique, patent-pending technology, providing an extremely fast series of flash pulses. Switch to HSS Mode with a simple button-press that allows you to shoot at shutter speeds as fast as 1/8000 of a second.
Exceptionally Short Flash Duration
In Normal Mode, which prioritizes color fidelity, the B1 500 AirTTL is capable of T0.5 flash durations of 1/11,000 sec at minimum power, and 1/1000 sec at full power.
Freeze Mode automatically selects the shortest flash duration possible at the user-selected power level. Motion-stopping flash durations of 1/19,000 at minimum power make the B1X 500 AirTTL ideal for high speed shooting.
Quick Burst Mode
At lower power settings Quick Burst Mode allows a series of flashes to be fired at a faster pace than the B1 can recharge, allowing triggering of up to 20 frames per second.
Lithium-Ion Battery Powered
The B1's lithium-ion battery gives you up to 325 full-power flashes and thousands of minimum power flashes on a 2.5-hour charge from the provided 2.8A multi-voltage charger. An optional 4.5A quick charger shortens that time to 1.5 hours. Fuel gauge type LEDs on both the battery and charger allow you to monitor remaining power.
LED Modeling Lamp
An LED modeling light with a 130W tungsten-equivalent output draws very little power from the battery and generates minimal heat. The light can be set to proportional or full power and will dim during recycling if that option is selected.

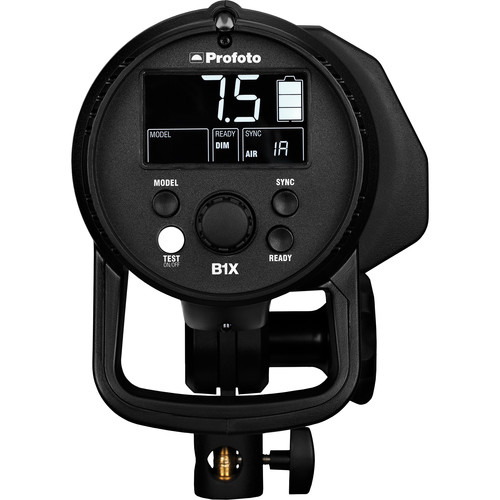

The B1X's control panel has a 1.4 x 2.5" bright LCD screen that informs the user of the flash's power level, sync choice, modeling light mode, recycle alert, and battery charge level.
Power Variable Over 9 Stops
Power can be regulated over a 9-stop range (2 to 500Ws / 1/256 to 1/1) in 1/10 or 1-stop increments.
Full Light Shaper System Compatibility
With its zoom scale and integrated umbrella sleeve, the B1X 500 AirTTL is compatible with Profoto's extensive line of umbrellas, reflectors, and softboxes.
|Maximum Power||2 to 500 Ws|
|Power Control||9 Stops in 1/10-Stop Increments|
|Guide Number||291' / 92 m at 6.56' / 2 m, ISO100 with Reflector|
|Flash Duration||t.5: 1/11,000 to 1/1000 Sec|
|Recycle Time||0.1 to 1.9 Sec ()|
|Color Temperature||5600K ± 150K|
|Flash Ready Indicator||Audio, Visual|
|Accessory Fitting Type||Profoto OCF|
|Control Modes||Free Set, Off, Proportional|
|Sync Type||Cable, Infrared, Optical, Radio|
|Sync Speed||1/1/250 Sec
1/1/8000 Sec (High-Speed)
|Wireless Range||1000' / 300 m (Radio)|
|AC Input Voltage||100to240 VAC, 50 / 60 Hz|
|Circuit Protection||Adaptive Thermal Control|
|Maximum Output Voltage||14.8 VDC|
|Capacity (mAh)||3000 mAh|
|Flashes Per Charge||325 Flashes (Full Power)|
|Recharge Time||2.5 Hours|
|Operating Temperature||14 to 122°F / -10 to 50°C|
|Storage Temperature||4 to 140°F / -20 to 60°C|
|Dimensions||ø: 5.1 x L: 12.2" / ø: 130.0 x L: 310.0 mm
ø: 6.7 x L: 12.2" / ø: 170.0 x L: 310.0 mm, Including Stand Adapter
|Weight||3 kg ( Including Battery )|
Profoto B1X 500 AirTTL 1-Light To-Go Kit
Lithium-Ion Batteries for B1 and B1X AirTTL Flash Heads
Plastic Transport Cap for D1 and B1 Heads
Battery Charger 2.8A for B1 and B2 500 AirTTL
Bag XS for B1X 500 AirTTL
