SHAPE D-Box Camera Power&Charger Kit For Sony

Price/Day: EGP. 250

Up to 12A Continuous Draw - D-Box Power & Charger (V-Mount) - Compatible with Sony a7 III & a7R III - Up to 100W Power Consumption - Power Supply & AC Power Cable - 8/12V Cable Output Connector - a7 III & a7R III Cable Connector - 15mm Rod Mount Bracket - Removable Delta Plate.

Product Details

Overview

SHAPE KBA73 Overview

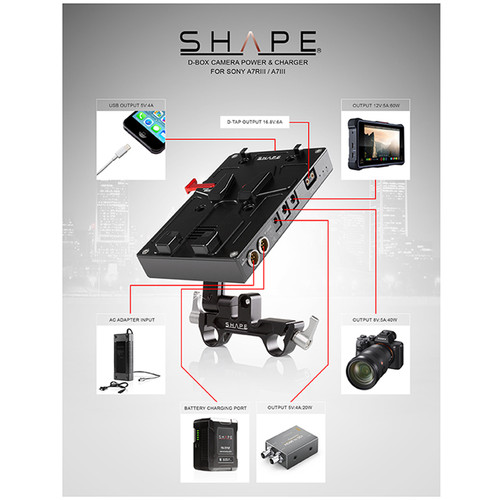

The D-Box Camera Power & Charger Kit from SHAPE is composed of a D-Box power and charger kit and a 14.8V 98Wh rechargeable lithium-ion V-mount battery. It is compatible with Sony a7 III and a7R III cameras. The D-Box has five outputs including D-Tap and 5, 8, 12, and 16.8V ports, plus USB 5V. It supports up to 100W of power consumption from the device and includes a 15mm rod mount bracket with a locking and angle adjustment system. The battery supports a continuous draw of up to 12A. When the D-Box is plugged in you can safely disconnect and reconnect the battery without powering down your rig. A 110 to 240V power supply, AC power cable, 8/12V cable output connector, a7 III/a7R III cable connector, and removable Delta plate are included.

Full Play V-Mount Battery

The Shape Full Play V-Mount Battery features a compact design that easily fits on small or large cameras, monitors, lights, or other pro video equipment. Power-hungry equipment can draw up to 12 amps, between the V-mount and D-Tap on the side. A USB output is provided for small video accessories or for charging smartphones or on-set mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. The battery's box-like design can be easily stacked for storage, or packed away in a case.

D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series

The D-Box Camera Power & Charger Kit from SHAPE is composed of a D-Box power and charger compatible with Sony a7 III and a7R III cameras. It features a small-size, lightweight V-mount battery plate with safe lock. The D-Box has five outputs including D-Tap and 5, 8, 12, and 16.8V ports, as well as USB 5V. It supports up to 100W power consumption from the device and includes a 15mm rod mount bracket with locking and angle adjustment system. There are threaded holes at the back of the plate for mounting on a cheese plate and LED indicators for power. When the D-Box is plugged in you can safely disconnect and reconnect a separately available battery without powering down your rig. A 110 to 240V power supply, AC power cable, 8/12V cable output connector, a7 III/a7R III cable connector, and removable Delta plate are included.

  • Compatible with most professional DSLRs and cameras such as ARRI, Blackmagic, Canon Cinema EOS, Canon EOS, Panasonic, RED, Sony P series, Sony ILCE, and mirrorless
  • 15" cable compatible with Sony a7 III and a7R III
  • Output cable compatible with 8 or 12V outputs
  • BP charger input to use and charge a battery (available separately) at the same time
  • AC adapter input to use without a battery
  • Delta plate included to mount on the D-Box main unit

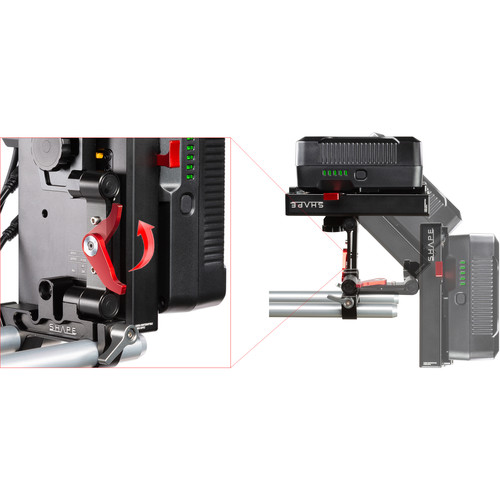

  • Knob system to lock and adjust the position of the D-Box unit
  • Gold Mount converter and 5V output cable available separately



Specifications

Full Play V-Mount Battery
Mount / Series Type V-Mount
Chemistry Lithium-Ion
Capacity (Wh) 98 Wh
Amp-Hours 6.8 Ah
Output Voltage 14.8 VDC
Maximum Load 12 A
Accessory Port 1 x D-Tap
1 x USB Type-A
Accessory Mounting Thread None
Dimensions (W x H x D) 4.7 x 3.6 x 2.2" / 12.0 x 9.1 x 5.5 cm
Weight  0.7 kg
D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series
Materials Shock-Resistant, PPS Aircraft-Grade
Power Supply Input: 110-240 V, 2 A at 50/60 Hz
Output: 16.8 V, 6 A
Outputs 1 x 5 V, 4 A, 20 W
1 x 8 V, 5 A, 40 W
1 x 12 V, 5 A, 60 W
1 x D-Tap 16.8 V, 6 A, 100 W

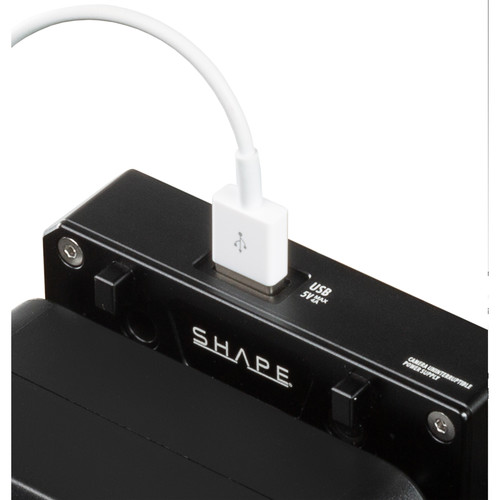

1 x USB 5 V, 4 A
Dimensions 5.51 X 3.54 X 0.79" / 14.0 X 8.99 X 2.01 cm
Weight  1.05 kg

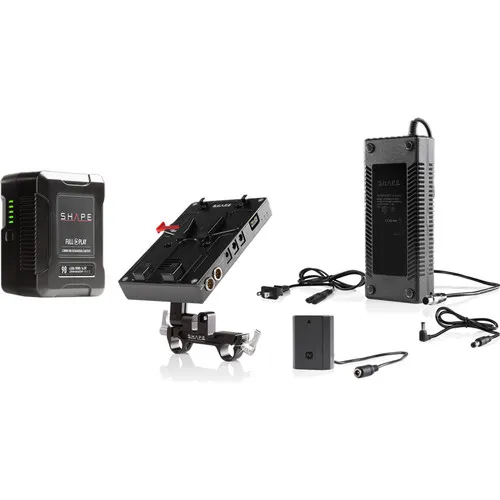

Includes

D-Box Power & Charger (V-Mount)
Power Supply
AC Power Cable
Cable Output Connector (8V, 12V)
Cable Connector (a7 III, a7R III)
15mm Rod Mount Device
Removable Delta Plate
Tool Box Kit (Allen Key, Mounting Screws)
