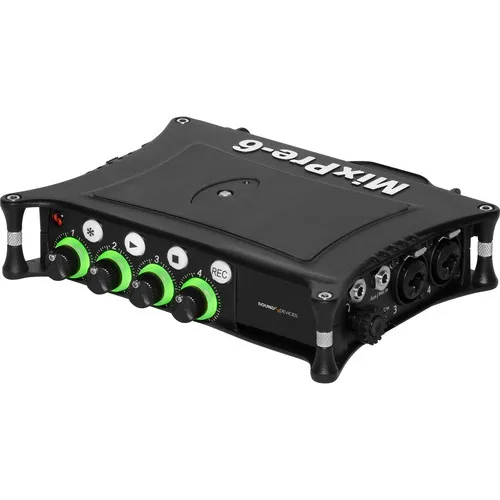

Sound Devices MixPre-6 II Field Recorder (T)

Price/Day: EGP. 1200

For Location Recording, Filmmaking & VR - 32-Bit Recording / 32-Bit USB Streaming - Record up to 192 kHz, Stream at 96 kHz - 4 x High-Gain, Low-Noise Mic Preamps - Records 6 Inputs & Stereo Mix - Internal Timecode Generator - Adjustable Analog Limiters - Polarity, Low-Cut, Delay & Pan Controls - AC, USB Bus & Battery Powering Options - SD Card with Auto-Copy to USB Drives

Product Details

Category:Audio Recorders

Overview

For independent filmmakers, field recordists, and Ambisonic enthusiasts who need pristine audio capture of up to four microphones, the Sound Devices MixPre-6 II multitrack field recorder is an ideal tool. Record up to six tracks of external sources (four channels via XLR-1/4" combo jacks and two channels via a 3.5mm mini jack)—as well as a stereo mix—at sample rates and resolutions of up to 192 kHz / 32-bit, all while monitoring audio in headphones. If you choose to use the MixPre-6 II as your studio interface, you'll be able to achieve sample rates up to 96 kHz.

The MixPre-6 II offers many upgrades over its predecessor. Chief among these features is the ability to record at 32-bit floating point to an internal SD card. The unit also functions as an audio interface capable of 32-bit floating point streaming over USB to a Mac computer. This makes it nearly impossible for you to clip (distort) audio on the way in. Whether you're recording hot or making use of the unit's astounding 142 dB dynamic range, you'll only be handicapped by the quality of your microphone.

Other improvements include the ability to auto-copy recorded tracks to USB thumb drives, making file transfers a breeze. Lovers of sync will revel in a handy new feature: a full-fledged, built-in timecode generator, accurate to better than 0.2 ppm (0.5 frames in 24 hours). Even when powered off, the MixPre-6 II maintains accurate timecode for up to four hours.

All of this is available in a six-channel package that can be powered from wall chargers, computers, AA batteries, or Sony L-series batteries. Whether you use the device in an advanced or basic capacity, the MixPre-6 II will suit any intimate, field-based production.

Kashmir Preamps

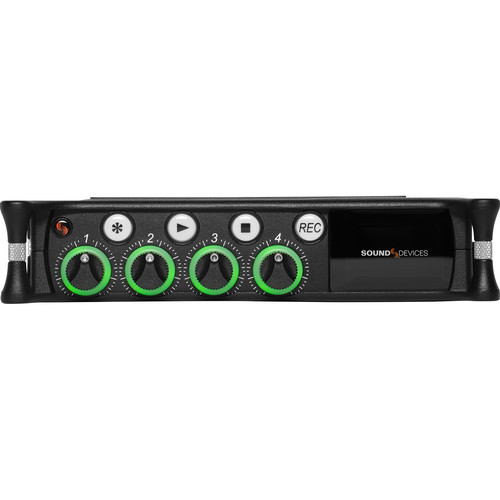

Like the original unit, the MixPre-6 II offers class-A Kashmir mic preamps. All inputs are fully RF-filtered to keep interference out.

Audio Interface Functionality

When connected to a Mac or Windows computer, the MixPre-6 II can serve as an 8-input / 4-output USB audio interface for your favorite audio recording software. The unit will record six tracks in isolation and provide a stereo mix of all six channels to boot. It will operate at sample rates up to 96 kHz.

The unit can send a complete 32-bit float audio signal over USB when connected to a Mac computer running macOS Catalina (version 10.15 or later).

USB Audio Input

Stream up to four tracks into the unit over USB, using the MixPre-6 II as a recorder from your host device. If you're a musician, you can utilize this feature to record a stereo mix from your host DAW as a backing track for further standalone recording.

A Cornucopia of Connections

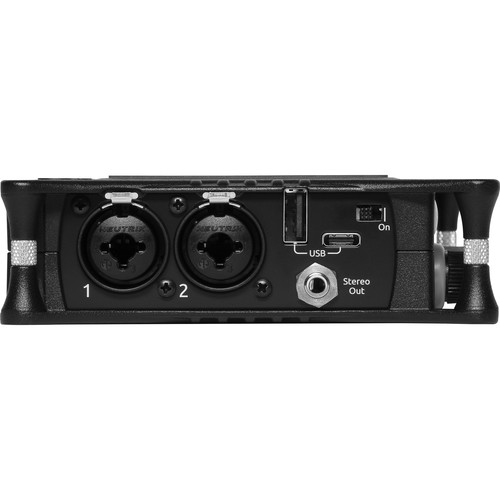

For inputs, you'll find four XLR-1/4" combo jacks and a 3.5mm auxiliary input. Audio output connections are handled over 3.5mm jacks. Timecode I/O is made possible via 3.5mm connections, though you also have the option of HDMI for inputting timecode.

Adjust on the Fly

Adjust the limiters, change the bit-depth, shift panning, delay, and polarity in the stereo mix, and filter out extraneous bass rumble with low-cut filters. Whether you record to an SD card or to your computer over USB, the MixPre-6 II can be customized to your needs.

Built-In Timecode Generator & Bluetooth Control

Thanks to the device's timecode generator, you can even trigger recording from the camera. With built-in Bluetooth, you can control the unit over the Wingman app, available from Sound Devices. This app displays high-resolution meters, current timecode, transport buttons, and more.

Ambisonics Integration

Upon installation of the Ambisonics plug-in (available separately from the Sound Devices plug-in store), field recordists, game developers, and VR content creators will appreciate the support for simultaneous multiformat recording (AmbiX, FuMa, LR Stereo, and LR Binaural), real-time binaural/stereo monitoring, and A- to B-Format conversion.

Transport and Mounting Options

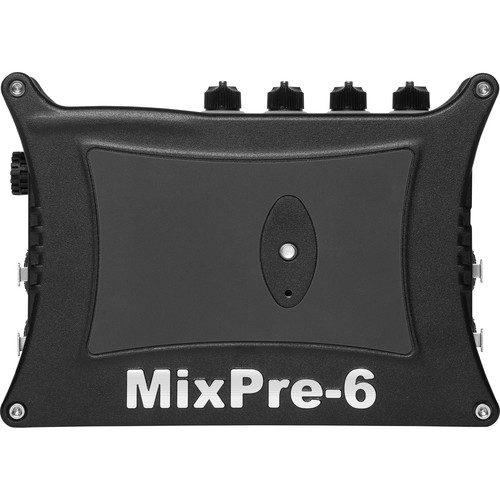

The MixPre-6 II is rugged, lightweight, and relatively compact, so you can throw it in a bag or mount it to a tripod or camera.

Key Features at a Glance

Kashmir microphone preamps with 48V phantom power
Internal timecode generator
Sample rates up to 192 kHz
Bit depths up to 32-bit float
Adjustable limiters
SD card recording and reading
Backup to USB drive
10 seconds of pre-roll at 48 kHz
USB control surface support
Customize with plugins
Add low cut, high pass, delay, polarity invert, and panning
Simultaneous recording, mixing, and USB audio streaming
Trigger record via timecode or HDMI timecode
Bluetooth for wireless control via Wingman app
Basic, Advanced, and custom modes
High-fidelity headphone amplifier
Firmware 9.0:
- Allows for both audio and timecode output on the stereo 3.5mm connector
- Supports two instances of the optional NoiseAssist plug-in (available separately). This useful plug-in instantly suppresses background noise, which can be handy on location.

Specifications

Portable Recorder

Form Factor	Field Recorder
Primary Use Applications	Audio-for-Video
Number of Tracks	WAV: 8 (6 Inputs + Stereo Mix)
Number of Input Channels	4
Maximum Sampling Rate	192 kHz / 32-Bit
Microphone	No
Number of Microphone Inputs	4
Built-In Speaker	No
Display	1.6" / 40.64 mm Color LCD Touchscreen

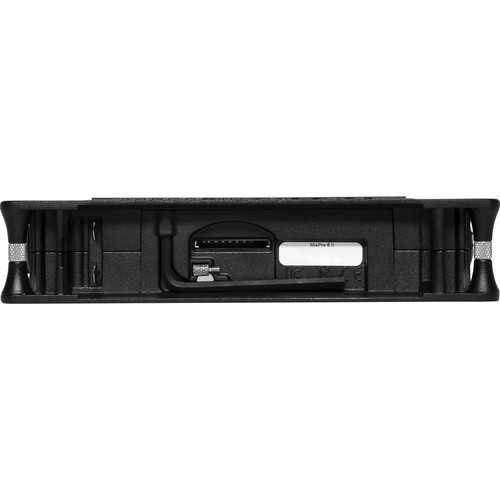

Memory Card Support	SD, SDHC, SDXC (Up to 512 GB)
Internal Storage	No
Special Features	Pre-Record Buffer

Recording

Audio File Formats	Recording: WAV
Sample Rates	WAV: 44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz
Bit Depth	16 / 24 / 32-Bit (A/D Conversion)
Signal Processing & FX	Delay, Limiter, Low-Cut Filter
Timecode Support	Yes
Frame Rates Supported	23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy	±2 ppm / 0.5 Frame per 24 Hrs (Timecode)
Included Software	No

Connectivity

Analog I/O	4x Combo XLR-1/4" 3-Pin Female Balanced Line/Mic Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output 1x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
Digital I/O	1x 1/8" / 3.5 mm SMPTE Timecode Input 1x 1/8" / 3.5 mm SMPTE Timecode Output 1x Micro-HDMI SMPTE Timecode Input
Phantom Power	+48 V, Selectable On/Off
Phantom Power Current	10 mA per Channel
Plug-In Power	Yes, 3 V
System Connection	1x USB-C (2.0) 1x USB-A (Control, Text Entry, Thumb Drive, 2.0)
Audio Interface Capability	Multi-Track
Wireless	Bluetooth 4.0
Mobile App Compatible	Yes: Android & iOS App Name: Wingman Functionality: Remote Control

Performance

Frequency Response	WAV: 10 Hz to 80 kHz ±0.5 dB (at 192 kHz)
Gain/Trim Range	Mic Inputs: +6 dB to +76 dB Line Inputs: -20 dB to +30 dB Mic/Aux Inputs: +10 dB to +40 dB Line/Aux Inputs: -10 dB to +20 dB Fader: Up to +20 dB Headphone Outputs: Up to +20 dB
Max Input Level	Mic Inputs: +14 dBu Line Inputs: +28 dBu Mic/Aux Inputs: -10 dBu Line/Aux Inputs: +10 dBu
Max Output Level	Outputs: +7.8 dBu
Headphone Output Power	300 mW per Channel
Dynamic Range	A/D Converters: 142 dB D/A Converters: 115 dB
Impedance	Mic Inputs: 4 Kilohms (Active-Balanced) Line Inputs: 4 Kilohms (Active-Balanced) Mic/Aux Inputs: 100 Kilohms (Unbalanced) Timecode Input: 20 Kilohms Timecode Output: 1 Kilohms
THD+N	Inputs: 0.005%
Equivalent Input Noise (EIN)	-128 dBu (A-Weighted)

Power

Power Options	Battery, USB Bus Power, AC/DC Power Adapter
Battery Type	4x AA (Included) 2x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)
AC/DC Power Adapter	5 VDC (Included)
Input Power	100 to 240 VAC, 50 / 60 Hz

Physical

Included Accessories	No
Mounting Options	1/4"-20 Male (Top) 1/4"-20 Female (Bottom)
Operating Temperature	-4 to 140°F / -20 to 60°C
Storage Temperature	-40 to 185°F / -40 to 85°C
Operating Humidity	0 to 90%
Dimensions	6.5 x 1.4 x 4.6" / 166 x 36 x 118 mm
Weight	19.9 oz / 0.6 kg (without Batteries)
