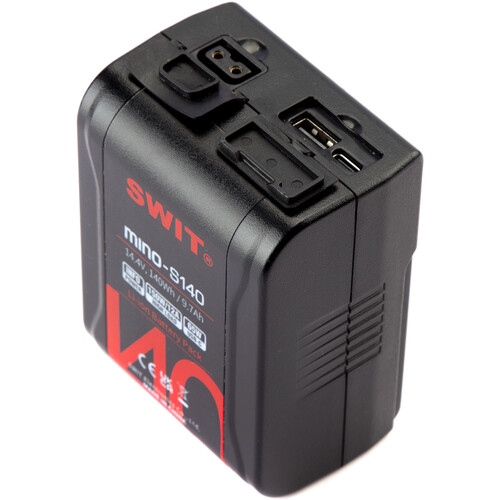

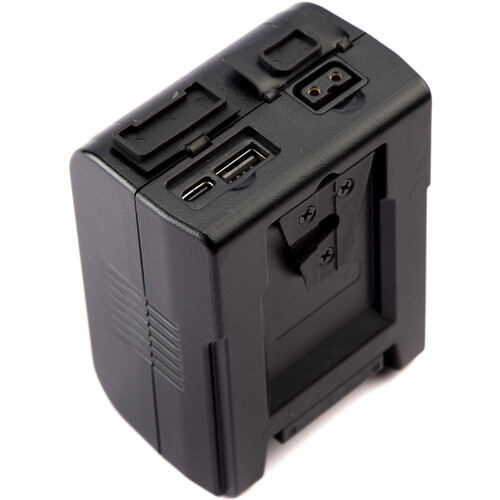

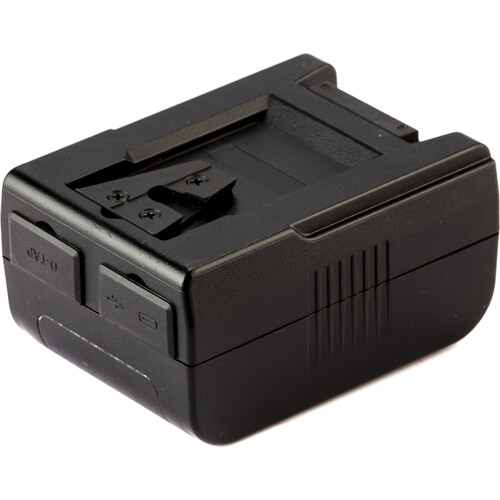

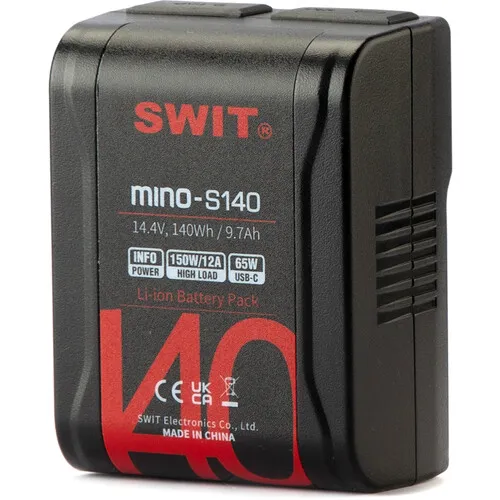

SWIT Mino-S140 14.4V 140Wh V-Mount Battery

Price/Day: EGP. 300

Compact 140Wh Li-Ion V-Mount Battery - D-Tap, USB Type-A & Type-C Outputs - D-Tap & USB Type-C Also Charge Inputs - Up to 12A Continuous Load - Wire-Free Internals, Circuit Protection - 4-Stage Status LEDs - Passes Power Info to RED/Sony Cameras

Product Details


Add an ultracompact professional battery to power your rig with this V-mount 140Wh Pocket Battery with D-Tap and USB Outputs from SWIT. The battery provides a large 140Wh capacity and a 12A maximum load while maintaining a tiny size that fits onto small rigs such as gimbals and drones.

There are multiple ways to power your camera and accessories, including a D-Tap output, a USB Type-A output, and a USB Type-C output. The D-Tap and USB Type-C ports can also be used as inputs to charge the battery. The 4-LED gauge shows the remaining battery capacity, and that information can be passed through to Sony and RED camera displays. The battery features no internal wiring and has built-in circuit protection.

Key Features
  • Tiny V-mount battery that fits in your pocket
  • High 140Wh, 9.7Ah capacity
  • 150W, 12A continuous load
  • One D-Tap 150W, 12A output also supports charging input
  • One USB Type-A 5V, 2A output
  • One USB Type-C with 65W output also supports 48W input
  • A 4-step LED power indicator
  • Power info pass-through for both Sony and RED
  • Wire-free internal design
  • Multiple circuit protections


Mount / Series Type
Battery Capacity
9700 mAh / 140 Wh
Output Voltage
14.4 VDC
Maximum Load
12 A
Accessory I/O
1x D-Tap / P-Tap Input/Output 150 W, 12 A Out / 16.8 V, 3 A Out Regulated
1x USB-A Output 5 V, 2 A Regulated
1x USB-C Input/Output 65 W Out, 48 W In Regulated
USB Output
5 V
Charging Temperature
32 to 104°F / 0 to 40°C
Discharging Temperature
-4 to 122°F / -20 to 50°C
Dimensions (W x H x D)
4.1 x 3.1 x 2.2" / 105 x 79 x 55.5 mm
1.6 lb / 713 g


  • SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)
