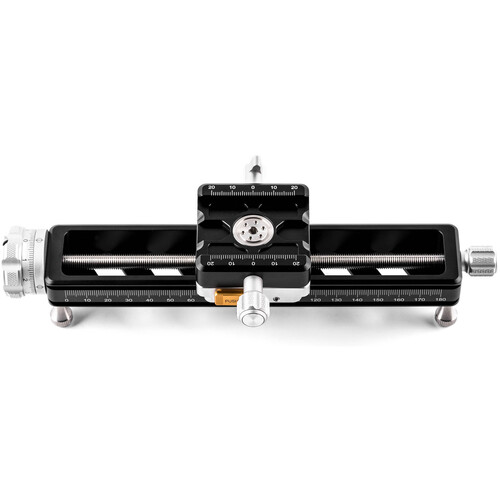

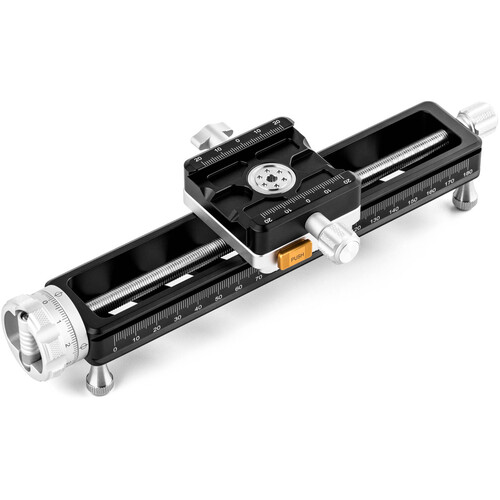

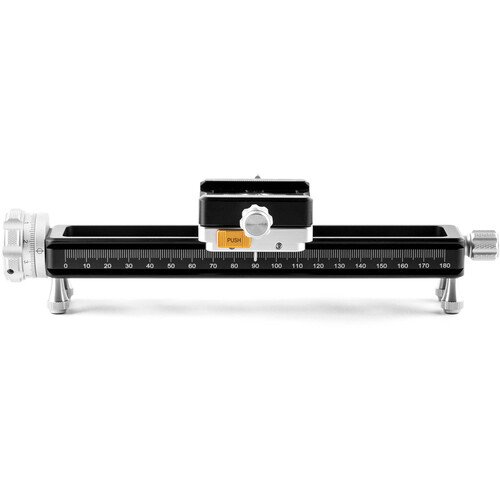

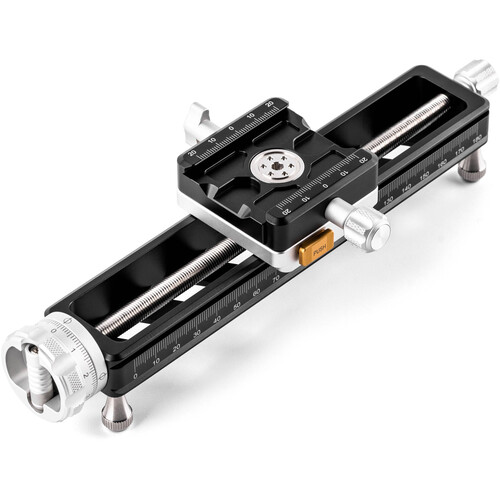

NiSi NM-200S Macro Focusing Rail

Price/Day: EGP. 300

For Precise Camera-to-Subject Focusing - Rotating Clamp with Quick Adjustment - 7.9" Length - 7.1" Travel Length - Load Capacity: 11 lb - Collapsible Thumb-Screw Knob - Removable Rubber-Tipped Feet - CNC Machined Aluminum Construction

Product Details

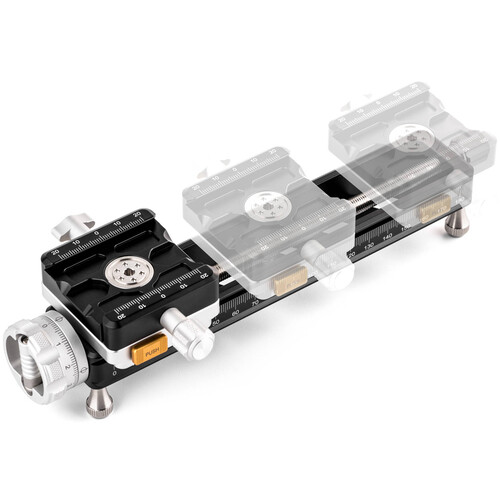

The compact Macro Focusing Rail NM-200S from NiSi provides precision camera-to-subject distance control for macro photography using camera/lens combinations up to 11 lb. It's 7.9" in length and features a 7.1" travel length. The integrated Arca-type quick release set rotates a full 360° for full control of camera placement and securely locks with a knob. An Arca-type dovetail runs the length of the chassis, allowing it to be clamped directly to most Arca-type tripod quick release receivers. The rotating 360° clamp features a push button release for quick adjustments. The dovetail also allows one NM-200S rail to be stacked on another for dual-axis movement. The rail comes complete with four rubber-tipped feet for tabletop use.

The thumb screw focusing knob has a folding handle for more precise control, an engraved movement scale, and a travel range of 1mm per rotation, which makes macro work and focus stacking a snap.

Focus Rail Features
  • Rotating Clamp with Quick Adjustment
  • Stackable for dual axis movement
  • Useful for focus stacking
  • Engraved index scale for fine adjustment
  • Collapsible thumb-screw knob
  • Removeable rubber tipped feet for tabletop use
Quick Release Plate Features
  • Long plate suitable for telephoto lenses
  • Safety screws
  • Integrated strap loop
  • Engraved index mark
  • D-ring tightening knob
  • Ergonomic design


Environmental Protection
Load Capacity
11 lb / 5 kg
Material of Construction
Hard Anodized Aluminum
7.9" / 200 mm
Not Specified by Manufacturer


  • NiSi Macro Focusing Rail NM-200S with 360° Rotating Clamp (7.9" Length)
  • 4 x Removable Foot
  • 2 x Quick Release Plate Safety Screw
  • Arca-Type Quick Release Plate
  • 1/4"-20 to 3/8"-16 Tripod Bushing
  • Storage Pouch
