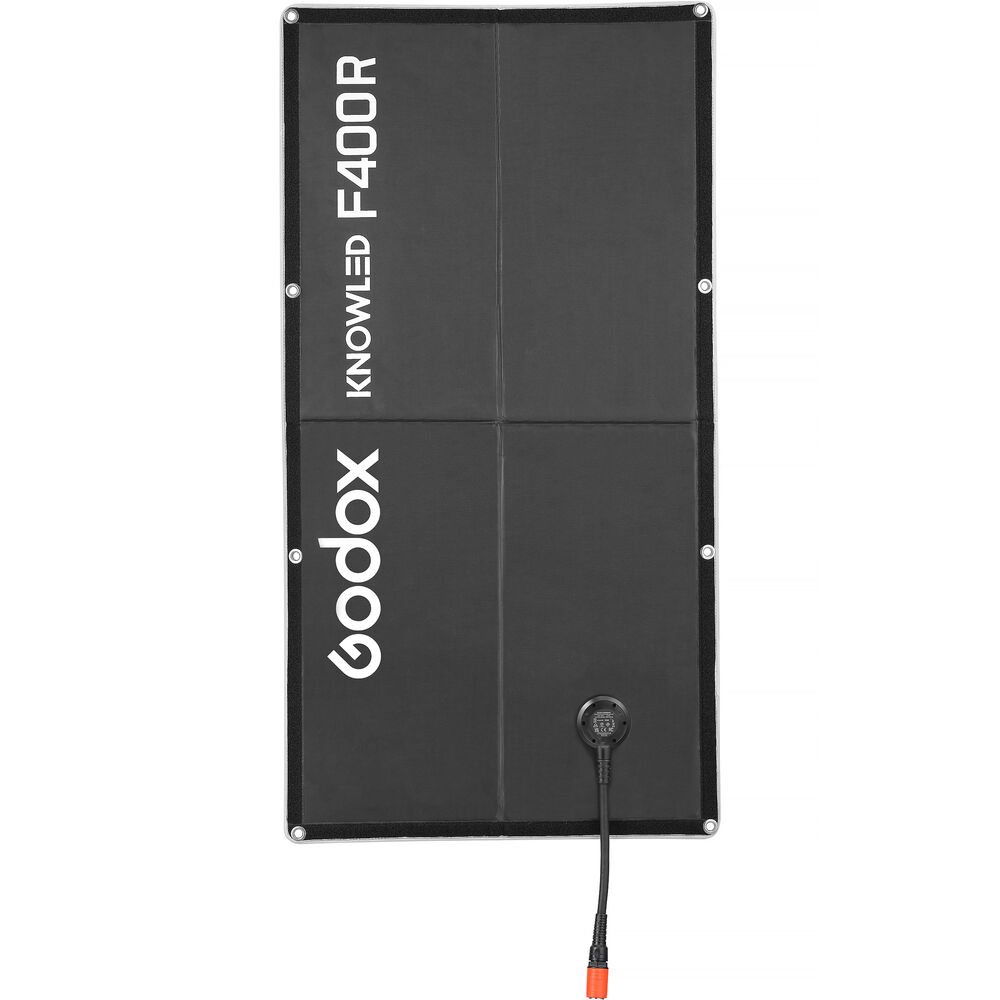

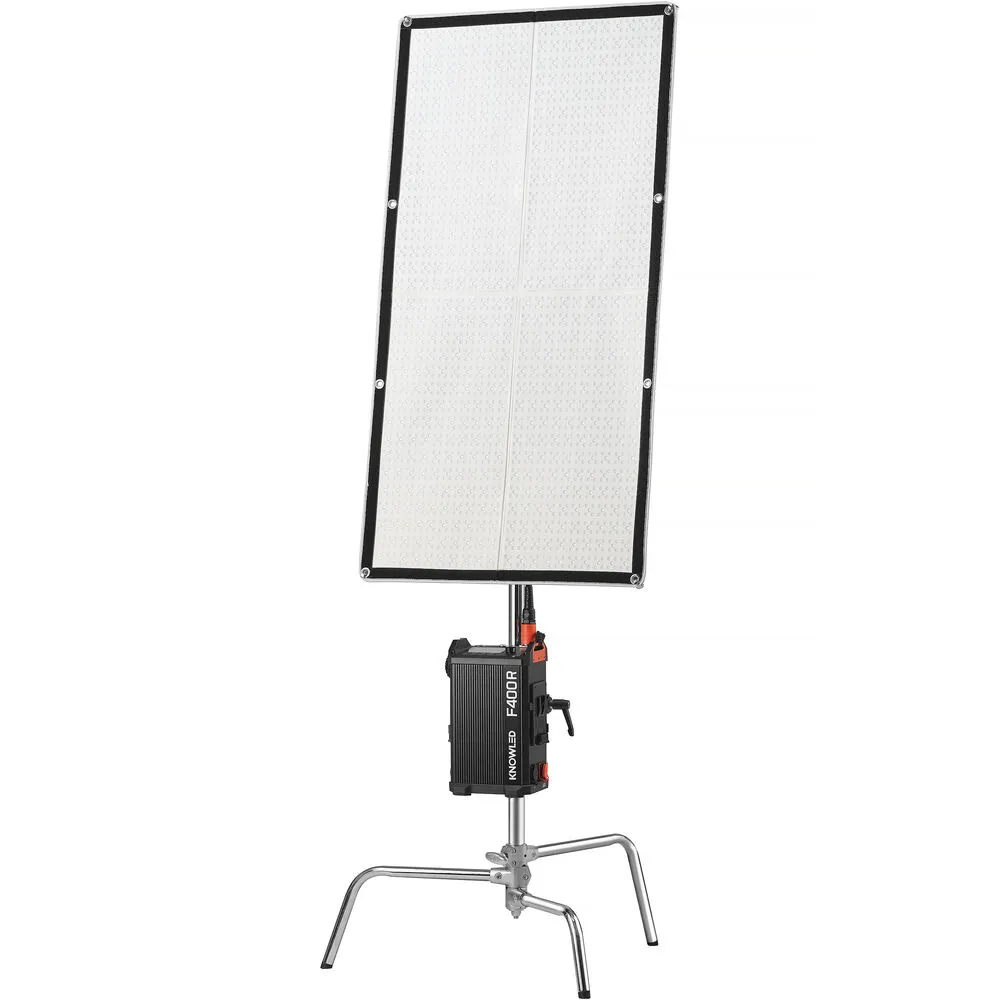

Godox KNOWLED F400R RGB Flexible LED Mat

Price/Day: EGP. 1250

For Film, Broadcast & Video Production - Output: 13,300 Lux at 3.3' (5600K) - 1800-10,000K CCT; RGB Color Control - 2 x 4' Panel; AC/DC Operation - Optional V-Mount Battery Power - CRI 96 | TLCI 97 - Onboard, DMX/RDM, CRMX & App Control - Supports Art-Net & sACN Protocols - IP54 Rated, 14 Lighting Effects - Four Dimming Curves, Green-Magenta Shift

Product Details

Overview

Full Color Flexibility
Color and flexibility combine with the KNOWLED F400R RGB Flexible LED Light Mat from Godox. Expanding the brand's F series of foldable LEDs, the F400R will add a variety of colors to your video or photo productions. Not only is this 2 x 4' LED mat physically flexible, but it has also been designed for flexible RGB color control. This 460W LED light has a wider CCT range that is adjustable from 1800 to 10,000K compared to the bi-color F series. The light also brings more creative options than its previous version, with 14 effects for easy lighting simulations. It offers ample power and control methods as well. Unlike the smaller F series mats, the Ethernet in this model supports the advanced Art-Net and sACN protocols. The F400R is a powerful, lightweight, and portable solution that can literally be bent or folded to suit different environments. The light comes with the controller, a connector cable, a power cable, a metal bracket for mounting, a standard softbox for diffusion, and a carry case for storage.
For Multiple Scenarios
The F400R is ideal for image-makers who need a versatile and literally flexible RGB lighting solution. The Godox KNOWLED F series of foldable LED mats is designed for those working in various lighting scenarios, including but not limited to advertising and e-commerce setups to larger film and television productions. This 2 x 4' version delivers a bright light output of 13,300 lux at 3.3' and 5600K.
Full RGB Lighting
Keeping high color rendition scores of 96 CRI and 97 TLCI ensures that professionals get accurate color output at all times. The F400R gives you total control of the color with CCT, RGBW, HSI, GEL, XY, and FX modes. Just as the previous bi-color-only series, the F400R also features variable intensity from 0 to 100% in 0.1% increments and four dimming curves - linear, S-curve, exponential, and logarithmic.
Advanced Control Methods
Although the F400R was made to facilitate the user experience, the LED mat offers advanced control methods to meet all kinds of needs. Make lighting adjustments on the controller unit or by industry-standard protocols such as DMX512, RDM, or LumenRadio CRMX. Expanding your options, the Ethernet control supports the more advanced Art-Net and sACN protocols. If you are working in less demanding setups, the F400R can also be controlled via Bluetooth using the Godox Light or Godox KNOWLED apps from up to 98.4' away.
AC Power & Optional V-Mount Battery
Power options are flexible as well. You can run it on universal 100 to 240 VAC or on optional 14.8/26V V-mount batteries whenever AC power is unavailable.
14 FX Modes
Choose from flash, lightning, cloudy, broken bulb, TV, candle, fire, firework, explosion, welding, cop car, SOS, RGB cycle, and party preprogrammed lighting effects.
IP54 Rated
Differently from its bi-color version, the F400R is rated at IP54 for both the light and the controller. This ensures protection from dust and water in both outdoor and indoor scenarios.
Additional Details
  • Normal, low, and high control modes
  • Select from the original gamut, correction gamut, Rec. 709, or DCI-P3 color space
  • Green/magenta adjustability from -100 to +100%
  • Integrated mounting holes
  • Stand mounting compatible
  • USB-A port for firmware updates

Specifications

Godox F400R Specs

Key Specs
Item Type
1x LED Flexible Light
Included Light Modifier
1x Softbox
Included Storage Case
Yes
Photometrics
5600K: 1235 fc / 13,300 Lux
Color Temperature
1800 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
CRMX
Power Source
AC Power (Cable Included)
Battery (Not Included)
Battery Plate Type
2x V-Mount (Built-In)
Battery
2x V-Mount Rechargeable, 14.8 to 26 VDC (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
460 W
Fixture Mounting
1x 5/8" Stud (Via Bracket)
Light Fixture
Item Type
1x LED Flexible Light
Included Light Modifier
1x Softbox
Included Storage Case
Yes
Photometrics
5600K:
1235 fc / 13,300 Lux at 3.3' / 1 m*

*Standardized Measurement Supplied by the Manufacturer
Color Temperature
1800 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%
Cooling System
No
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
CRMX
Mobile App Compatible
Yes: Android & iOS
App Name: Godox Light
Functionality: Remote Control
Wireless Range
98.4' / 30 m (Bluetooth)
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Not Included)
Inputs/Outputs
Light Fixture
To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input
Power Supply/Controller
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x RJ45 Network Input
1x USB-A Power/Firmware Input/Output (5 VDC at 1.5 A)
Battery Plate Type
2x V-Mount (Built-In)
Battery
2x V-Mount Rechargeable, 14.8 to 26 VDC (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
460 W
Mounting
Fixture Mounting
1x 5/8" Stud (Via Bracket)
Included Adapter
1x Swivel Mount: 5/8" Receiver to 5/8" Receiver
General
Display
Yes
Environmental Resistance
Dust/Water-Resistant (IP54)
Operating Conditions
-4 to 113°F / -20 to 45°C
Dimensions
48.07 x 25.08" / 122.1 x 63.7 cm (Fixture)
Weight
4 lb / 1.8 kg (Fixture)
12.8 lb / 5.8 kg (Power Supply/Controller)

Resources

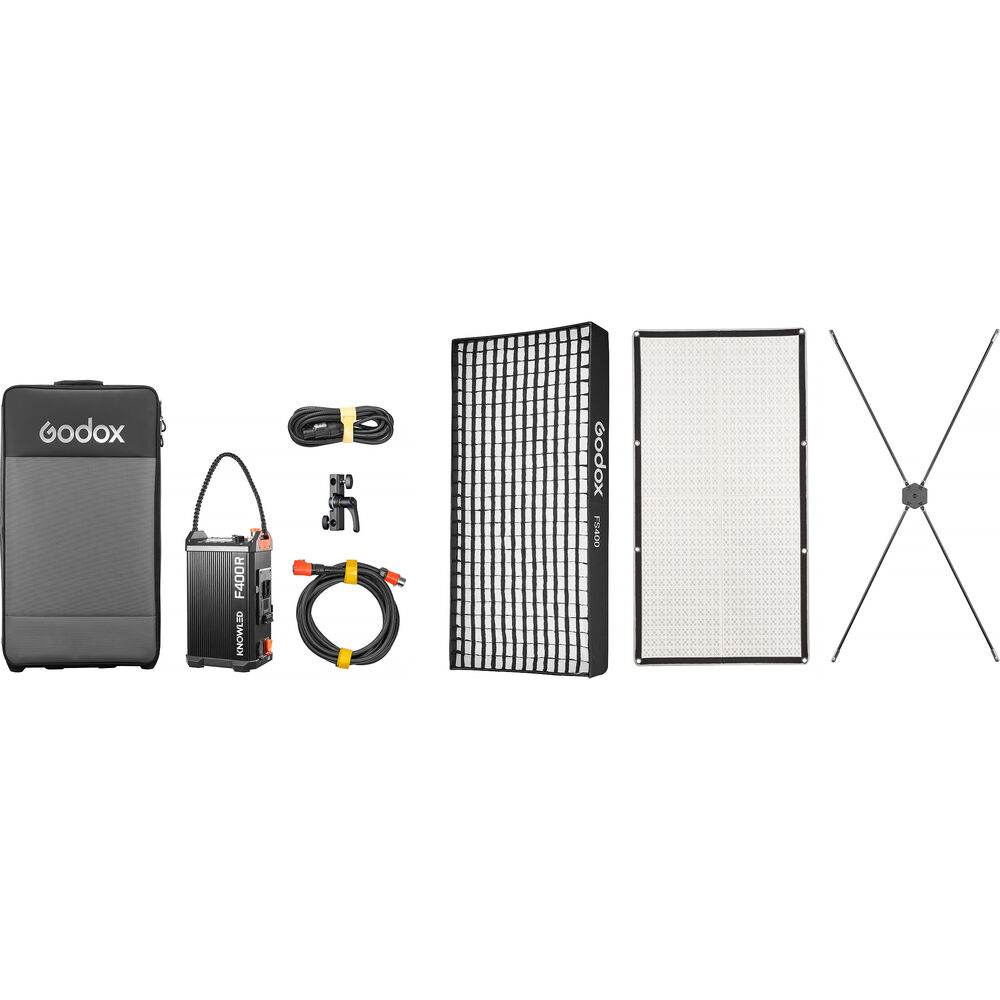

Includes

Godox KNOWLED F400R RGB Flexible LED Light Mat
Godox KNOWLED F400R Controller
Godox KNOWLED F400R Metal Frame
Godox KNOWLED F400R Softbox
Godox KNOWLED F400R Skirt Cloth
Godox KNOWLED F400R Grid
Godox KNOWLED F400R Connection Cable
Godox KNOWLED F400R AC Power Cord
Godox KNOWLED F400R Carry Case
