Nanlux 15-30° NL Mount Projection Attachment
  • image
  • image
  • image
  • image
  • image
  • image
  • image
  • image

Nanlux 15-30° NL Mount Projection Attachment

Price/Day: EGP. 650

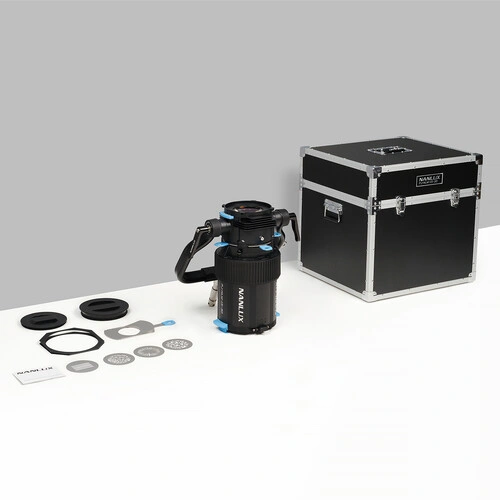

For 900C, 1200/1200B & 2400B LED Lights * For Precise Lighting & Increased Output * 15-30° Zoom Range * Aspherical Optical Lens, 90° Rotation * Cutting Shutters, Optional 18-Blade Iris * Integrated Yoke * Aluminum Construction, Portable Optimized Heat Dissipation * Includes Four Gobos, Holder & Gel Frame * Includes Flight Case

Product Details

Overview

Take advantage of the flexibility the NL Mount Projection Attachment for Evoke Series from Nanlux will bring to your productions. Featuring zoom and focus compatibilities, this projection attachment enables maximum light-shaping control. Easily project a background image or achieve an increased output with your Evoke 900C, 1200, 1200B, or 2400B fixtures. Use the smooth zoom ring to create your desired focus with precision, cutting shutters, or an optional iris to shape the light. A supplied gobo holder allows you to attach one of the four included gobos to the projector to create different patterns. Users will also get a gel frame to add optional color gels. The projection attachment ships in a sturdy aluminum flight case that stands up to the rigors of traveling to and from the set.

Increased Output

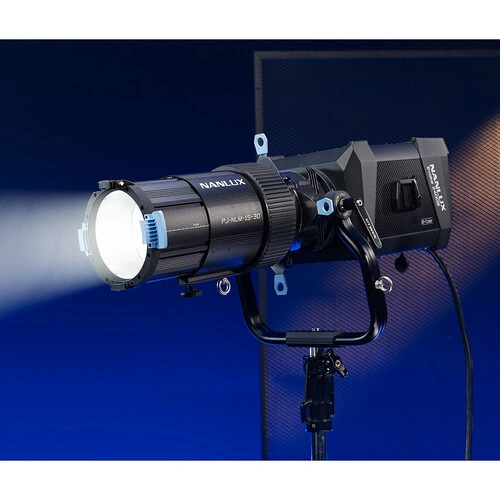

When combined with the Evoke series of LEDs, this projection attachment can produce the brightest possible light from them. It dramatically increases the output of the 900C, 1200, 1200B, or 2400B lights you use it with. For example, the Evoke 900C is 7.4 times brighter than its bare light when this attachment is used. It reaches up to 32,720 lux at a distance of 9.8' (15°, 5600K).
Convenient 15-30° Zoom Range

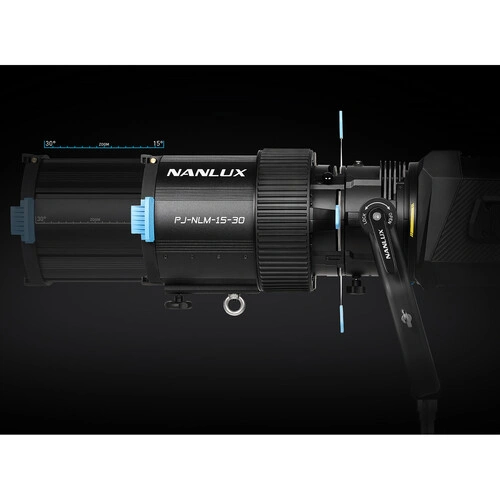

An adjustable 15-30° zoom that extends or retracts allows for precise illumination control without physically moving the light.
Zoom Ring
A smooth zoom ring can be adjusted by rotation to project a focused light that can be defocused to suit the user's requirements.
Shape Your Light
Nanlux has developed this projection attachment as a meticulous optical system. Cutting shutters are independently adjustable for more precise control. An optional 18-blade iris lets you easily manipulate the beam output and create a flattering circular beam shape.
Aspherical Optical Design
Its aspheric lens with an optical coating can efficiently improve the light transmittance and bring 78% uniformity in the beam. It eliminates chromatic aberrations and minimizes distortion, while its optical coating also improves color temperature accuracy. The result is a well-controlled beam and minimized light loss.
90° Rotatable Lens Barrel
Easily adjust the beam angle with a 90° rotatable lens barrel without needing to move the shutter or the gobo.
NL Mount
Equipped with Nanlux's proprietary NL mount, the attachment can be securely mounted so your lighting requirements are met. Expand your lighting effects by combining it with optional reflectors.
Lens Compatibility
The PJ-NLM-15-30 is compatible with third-party barrels and lenses to elevate its potential.

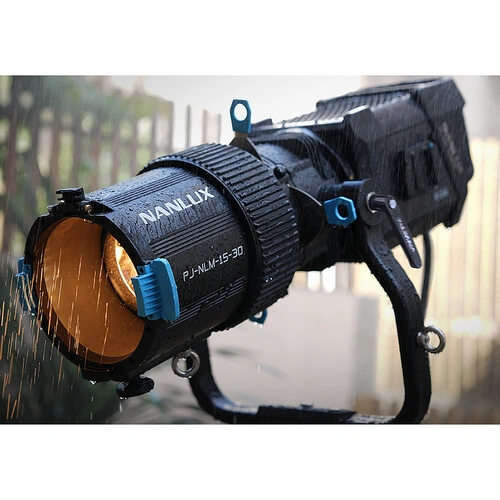

Robust Construction, Heat Resistant
The attachment is made of aluminum alloy for durability. Nanlux keeps heat absorption to a minimum through the use of nylon-coated housing. Its passive cooling is a great asset for audio recording on set.
Integrated Yoke, Fast Setup

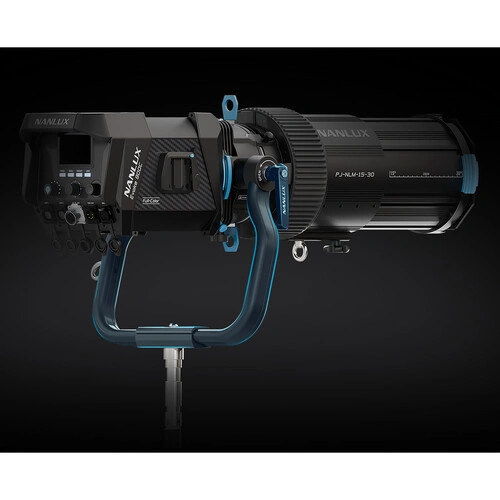

An integrated yoke and handles enable secure locking for a quick, uncomplicated setup. The mounted fixture will stay well-balanced to avoid any shift in your projection angle. The yoke's 15° offset design ensures maximum stability when mounted on an optional light stand.

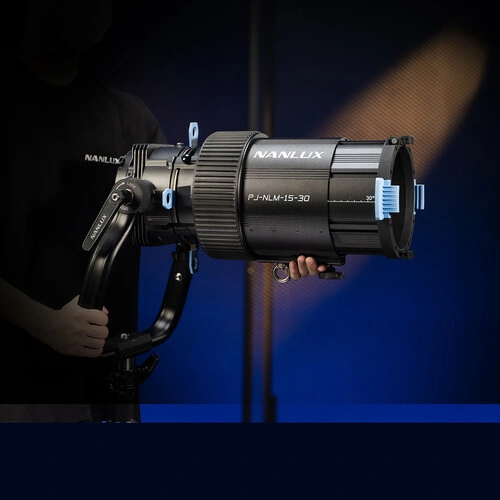

Portability

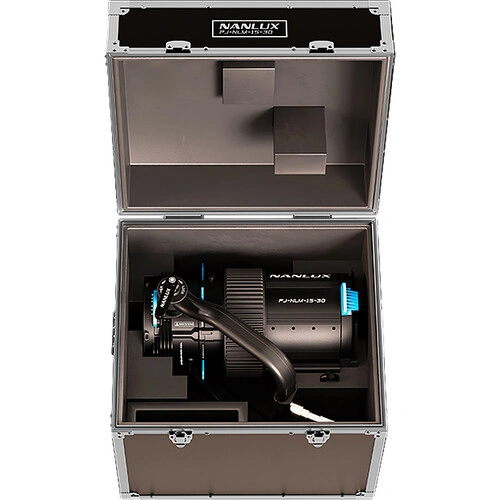

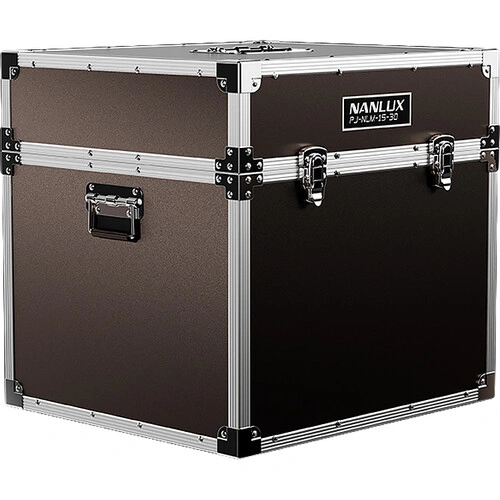

The PJ-NLM-15-30 is designed to be rugged yet portable. The supplied flight case holds the attachment and all included accessories.
Additional Details
  • Edge-blackening for a better, sharp edge
  • Antireflective coating improves color accuracy
  • Includes front and back protective covers to prevent dust and scratches
  • Barrel and yoke eyebolts for attaching an optional safety cable
  • Fastening knob to prevent wobbling during downward projection
  • Sets of other A-size gobos are separately available

Specifications

Compatibility
Nanlux Evoke 900C / Evoke 1200 / Evoke 1200B / Evoke 2400B
Physical
Mounting
1x NL Mount
Color
Black
Material of Construction
Aluminum Alloy, Nylon
Dimensions
24.78 x 20.26 x 15.45" / 62.94 x 51.46 x 39.24 cm (Projection Attachment Extended at 15°)
20.26 x 17.78 x 15.45" / 51.46 x 45.16 x 39.24 cm (Projection Attachment Retracted at 30°)
3.94 x 0.02" / 10.01 x 0.05 cm (A-Size Gobo)
10.15 x 4.02 x 0.96" / 25.78 x 10.21 x 2.44 cm (Gobo Holder)
7.4 x 7.4 x 1.38" / 18.8 x 18.8 x 3.51 cm (Gel Frame)
21.85 x 17.91 x 17.52" / 55.5 x 45.49 x 44.5 cm (Flight Case)
Weight
26.12 lb / 11.85 kg (Projection Attachment)
27.67 lb / 12.55 kg (Flight Case)
