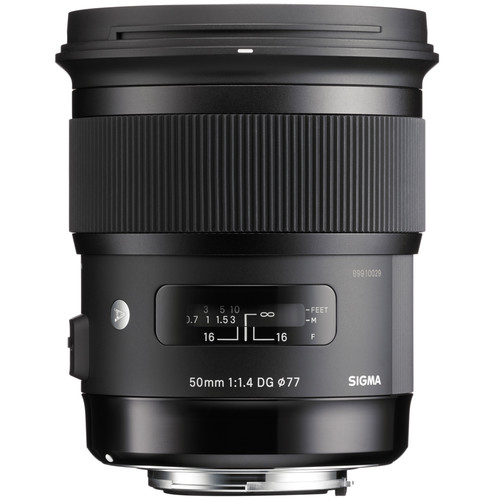

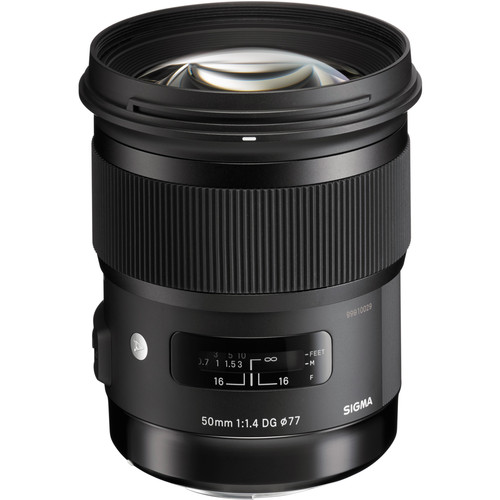

Sigma 50mm f/1.4 DG HSM |A Canon EF-Mount
Aperture Range: f/1.4 to f/16 - One Molded Glass Aspherical Element - Three Special Low Dispersion Elements - Super Multi-Layer Coating - Floating System & Large Diameter Design - Hyper Sonic AF Motor - Rounded Nine-Blade Diaphragm - Thermally Stable Composite Material - Brass Bayonet Mount - Compatible with Sigma USB Dock
The Canon EF mount Sigma 50mm f/1.4 DG HSM Lens is a fast standard-length prime designed to achieve high optical performance through the incorporation of both three Special Low Dispersion glass elements and one molded glass aspherical element. These elements, coupled with an advanced optical design, work to minimize sagittal coma flare and chromatic aberrations in order to provide high image sharpness and clarity. The lens' large diameter and floating system also help to correct for vignetting to ensure maintained peripheral brightness. A Super Multi Coating has been applied to lens elements, too, to reduce flare and ghosting for higher contrast and color fidelity.
A Hyper Sonic AF Motor, along with an optimized AF algorithm, produces quiet, smooth, and fast autofocus performance that benefits this lens' use in a wide variety of situations. This AF motor also permits full-time manual focusing control for refined precision by simply turning the focus ring at any time.
Sigma Global Vision - Art
As part of the Art line within Sigma's Global Vision series, this lens' is designed to achieve truly notable optical performance and is ideally suited for creative and artistic applications.
Molded Glass Aspherical Element
This lens has been designed using an advanced optical structure to achieve both high resolution and sharpness along with an aesthetic out-of-focus quality for greater subject separation. A molded glass aspherical element corrects for sagittal coma flare and enables full use of the fast f/1.4 maximum aperture with maintained sharpness and clarity. This design also works to minimize vignetting, color blur, and other distortions help to produce natural and pleasing bokeh for selective focus and shallow depth of field techniques. By reducing these aberrations, this lens is also well-suited to astrophotography or other situations with point-light sources due to its ability to suppress blur near the edges of the frame.
Special Low Dispersion Glass Elements
Three SLD (Special Low Dispersion) glass elements have been incorporated within the lens design to correct for axial chromatic aberration throughout the entire focusing range. This helps to ensure maintained image sharpness, clarity, and contrast regardless of focus point or aperture setting.
Large Diameter Lens
In designing the lens with a large 85.4mm diameter, and placing the widest elements within the front group, greater peripheral brightness is more easily attained when working with larger apertures. This design also lends itself to minimizing vignetting throughout the aperture range for greater clarity and detail across the image frame.
Super Multi-Layer Coating
A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.
By employing a floating system, the distance between glass elements is adjusted during focusing in order to limit the amount of lens movement required when shooting. This floating system helps to realize a minimum focusing distance of 1.3' with a maximum magnification of 1:5.6. Additionally, this design also contributes to high detail rendering capabilities throughout the entire focusing range.
Hyper Sonic AF Motor
The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time.
Other Lens Features
- A rounded nine-blade diaphragm helps to produce an attractive out-of-focus quality.
- The lens is constructed using a Thermally Stable Composite (TSC) material, along with traditional metals, for greater precision and use in wide temperature variations. The outside of the lens barrel is also engraved with the year of production.
- The bayonet mount is constructed from brass for ensured accuracy and durability.

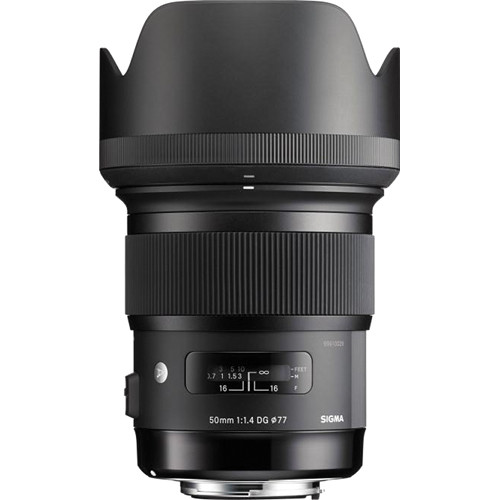

- The included lens hood is fitted with a rubber connection for a secure fit.
- This lens is compatible with the optional Sigma USB Dock for fine-tuning different lens characteristics and updating its firmware.
|Camera Mount Type||Canon EF|
|Format Compatibility||35mm Film / Full-Frame Digital Sensor|
|Angle of View||46.8°|
|Minimum Focus Distance||1.31' (40 cm)|
|Maximum Reproduction Ratio||1:5.6|
|Elements/Groups||13 / 8|
|Diaphragm Blades||9, Rounded|
|Filter Thread||Front: 77 mm|
|Dimensions (DxL)||Approx. 3.36 x 3.93" (85.4 x 99.9 mm)|
|Weight||1.79 lb (815 g)|
Sigma LCF-77III Lens Cap
Sigma Rear Lens Cap for Nikon
B+W 77mm UV Filter
Sigma LH830-02 Lens Hood
