SmallRig 3026B Monitor Mount for DJI RS 2&3

Price/Day: EGP. 150

Attaches to Left or Right Side of Gimbal - Tilt-Adjustable Thumbwheel Monitor Mount - Top and Bottom Shoe Mounts - Top and Side 1/4"-20 Threads - Matte Nonreflective Surface

Product Details

Category:Articulating Arms

Overview

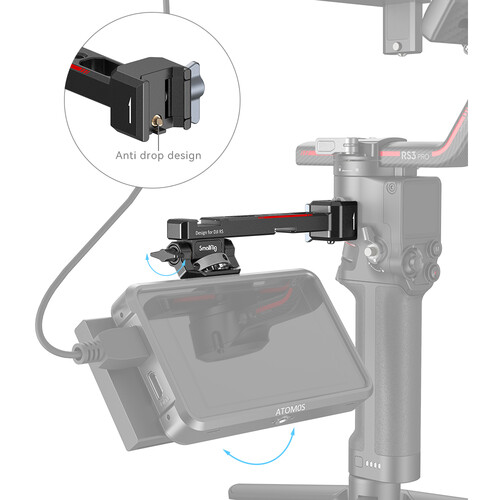

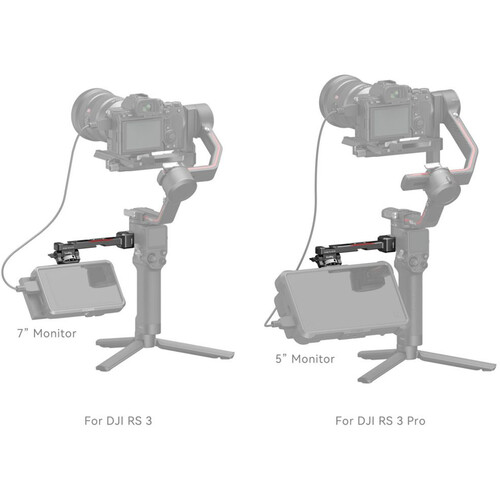

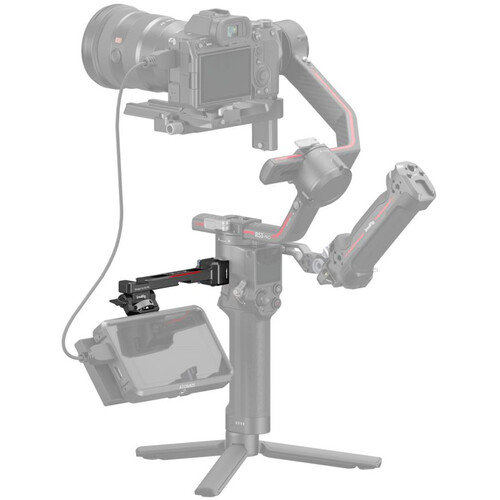

Via a built-in NATO mount, this SmallRig Monitor Mount attaches to the NATO rail on the side of your DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 3 Mini, RS 4, or RS 4 Pro gimbal and provides multiple mounting options for expanding your gimbal on either side, in a quick release solution. It can rotate 165° to ensure the right position for your monitor.

It's designed with a matte, nonreflective surface to match the aesthetic of the gimbals, and it has a robust aluminum construction with a locating pin on the NATO mount for secure attachment. Using the shoe mounts, 1/4"-20 thumbscrew, and 1/4"-20 threads, you can attach a monitor and accessories such as lights, microphones, audio receivers, and magic arms.

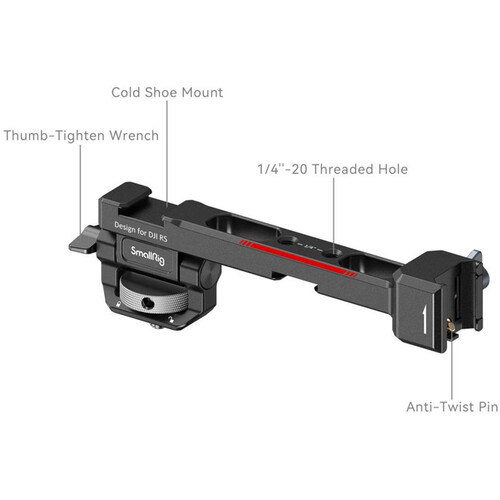

Mount Types

A top shoe mount on the end

A monitor mount on the bottom with a 1/4"-20 male thumbwheel and tension-based 165° tilt adjustment; the thumbwheel has slots for further tightening it using the included Allen wrench

A 1/4"-20 thread on the side, on the very end, allowing attachment of short magic arms and other accessories

In the middle of this Monitor Mount, there are two 1/4"-20 threaded holes on top and another shoe mount on the bottom

Specifications

General

Compatibility	DJI RS 2 Gimbal Stabilizer / RSC 2 Gimbal Stabilizer / RS 3 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 3 Mini Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer
Adjustments	165° Rotation

Physical

Mounting	1x NATO Clamp Multiplex 1/4"-20 Threads 2x Shoe Mount 1x 1/4"-20 Screw
Load Capacity	3.3 lb / 1.5 kg
Color	Black
Material of Construction	Aluminum

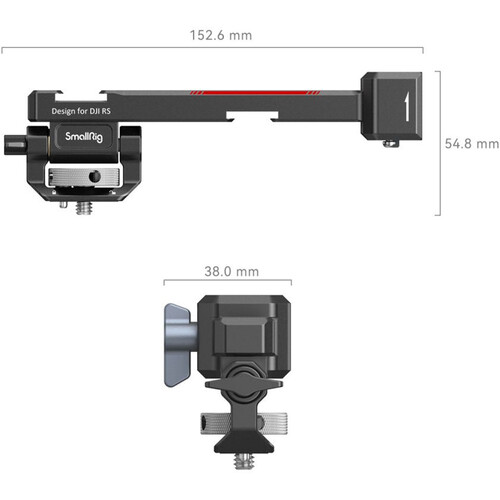

Dimensions	5.3 x 2.1 x 1.7" / 134 x 52.5 x 42 mm
Weight	4 oz / 113 g
