Nanlux Evoke 2400B Bi-Color LED Monolight (T)

Price/Day: EGP. 4000

Flight Case for Light and Reflector - 45° Reflector - For Studio and Film/TV Production - Output: 41,910 Lux at 9.8' at 5600K - 2700-6500K CCT, +/- 80 G/M Tint - CRI 96 | TLCI 97 - AC Power - Onboard, DMX, Bluetooth, App Control - IP55 Weatherproof

Product Details

Overview

Nanlux has put together this Bi-Color LED Monolight Kit with 45° Reflector and Full System Flight Case for shooters who want to take the light on location. This flight case accommodates both the light and the included reflector.

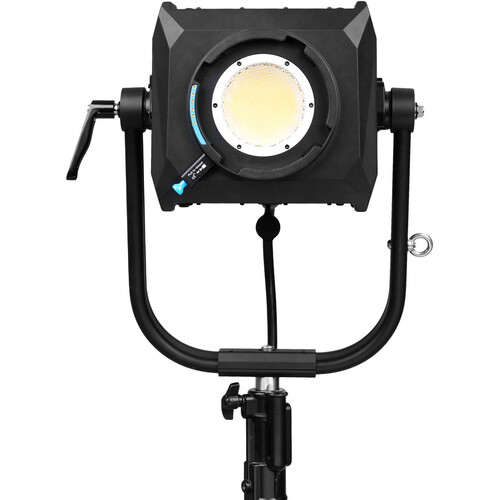

Nanlux Evoke 2400B Bi-Color LED Monolight

Whether in the studio or on location, the Nanlux Evoke 2400B Bi-Color LED Monolight is a versatile and robust lighting solution, bringing excellent color rendering and flexibility for professionals in photography and filmmaking. It offers a wide color temperature range from 2700 to 6500K with a high CRI of 96 and TLCI of 97, ensuring accurate color rendering, while the green and magenta adjustments ensure perfect color tuning. The light's brightness can be finely adjusted from 0 to 100% with various dimming curves like linear and S-curve for consistent color output. Compact at 16.8 x 12.5 x 10.4", this monolight delivers a strong output of 41,910 lux at 9.8'. It features flexible control options, including DMX/RDM, wired DMX, and wireless controls through NANLINK, LumenRadio, or Bluetooth. The Evoke 2400B is designed for both studio and location use, with an IP55 rating for weather resistance, and includes a 45° reflector, an adjustable yoke, a 24.6' DC cable, and a super clamp. It's ready for global use with a 100-240 VAC power supply, and it offers a Dual Draw Selector for 75% power at 15A or full power at 20A.

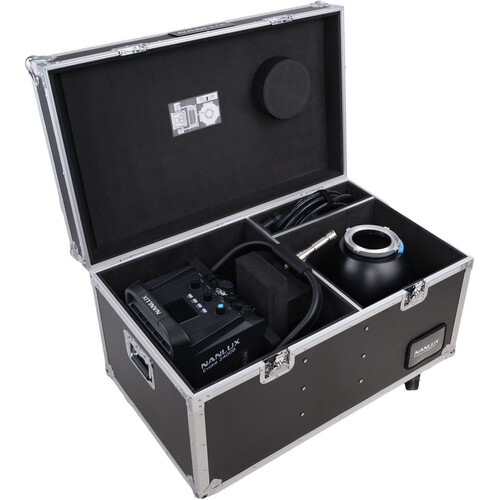

Nanlux Flight Case for Evoke 2400 and 45° Reflector

This Flight Case from Nanlux is a sturdy wheeled case made for safe and secure transportation and storage of your Evoke 2400 and its 45° reflector.

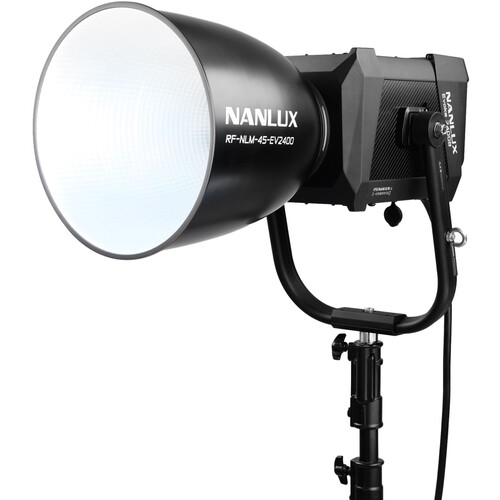

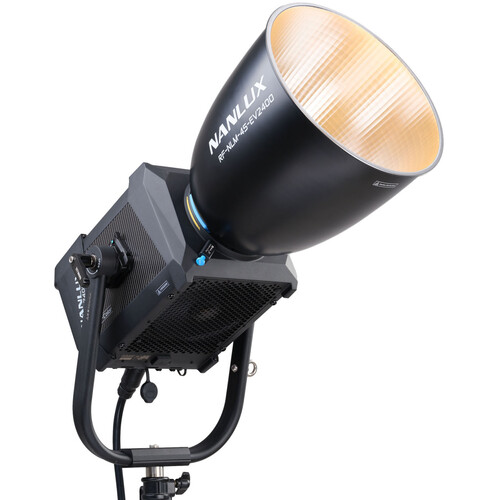

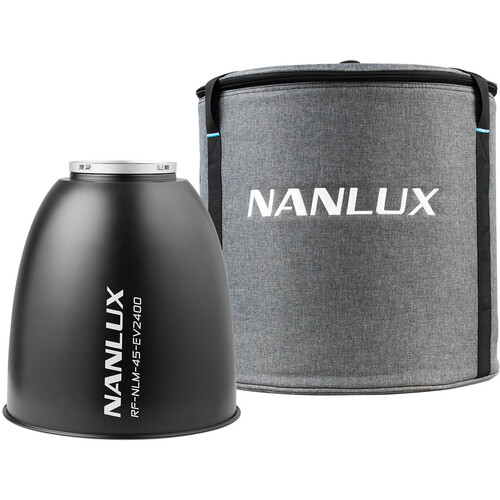

Nanlux Reflector for Evoke 2400 (45°)

The Nanlux Reflector for Evoke 2400 is a specially designed modifier with an NL mount for the Evoke 2400. The reflector has a medium 45° beam angle and comes with a soft case for storage and transport.

Specifications

Key Specs
Item Type
1x COB LED Monolight
Included Light Modifier
1x Reflector
Included Storage Case
No
Photometrics
3200K:
7300 fc / 78,588 Lux at 3.3' / 1 m (Unmodified)*
811 fc / 8732 Lux at 9.8' / 3 m (Unmodified)
323 fc / 3478 Lux at 16.4' / 5 m (Unmodified)
5600K:
8013 fc / 86,256 Lux at 3.3' / 1 m (Unmodified)*
890 fc / 9584 Lux at 9.8' / 3 m (Unmodified)
359 fc / 3873 Lux at 16.4' / 5 m
45° at 3200K:
30,693 fc / 330,390 Lux at 3.3' / 1 m (with Reflector)*
3410 fc / 36,710 Lux at 9.8' / 3 m (with Reflector)
1139 fc / 12,270 Lux at 16.4' / 5 m (with Reflector)
45° at 5600K:
35,040 fc / 377,190 Lux at 3.3' / 1 m (with Reflector)*
3893 fc / 41,910 Lux at 9.8' / 3 m (with Reflector)
1307 fc / 14,070 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance (Using Light at This Distance Is Not Advisable)
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Wireless DMX
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
48 VDC at 26 A
Power Consumption
2400 W
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
Light Fixture
Item Type
1x COB LED Monolight
Included Light Modifier
1x Reflector
Included Storage Case
No
Photometrics
3200K:
7300 fc / 78,588 Lux at 3.3' / 1 m (Unmodified)*
811 fc / 8732 Lux at 9.8' / 3 m (Unmodified)
323 fc / 3478 Lux at 16.4' / 5 m (Unmodified)
5600K:
8013 fc / 86,256 Lux at 3.3' / 1 m (Unmodified)*
890 fc / 9584 Lux at 9.8' / 3 m (Unmodified)
359 fc / 3873 Lux at 16.4' / 5 m
45° at 3200K:
30,693 fc / 330,390 Lux at 3.3' / 1 m (with Reflector)*
3410 fc / 36,710 Lux at 9.8' / 3 m (with Reflector)
1139 fc / 12,270 Lux at 16.4' / 5 m (with Reflector)
45° at 5600K:
35,040 fc / 377,190 Lux at 3.3' / 1 m (with Reflector)*
3893 fc / 41,910 Lux at 9.8' / 3 m (with Reflector)
1307 fc / 14,070 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance (Using Light at This Distance Is Not Advisable)
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%
Cooling System
No
Beam Angle
100° Unmodified
45° with Included Reflector
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless DMX
Mobile App Compatible
Yes: Android & iOS
App Name: NANLINK App
Wireless Channels
No
Wireless Groups
No
Wireless Frequency
2.4 GHz
Power & I/O
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs
Light Fixture
To Power Supply/Controller: 1x Unspecified Power Input
1x USB-A Female Service Input
2x RJ45 Network Input/Output
2x RJ45 Network Input/Output
1x XLR 5-Pin DMX Input
1x XLR 5-Pin Female DMX Output

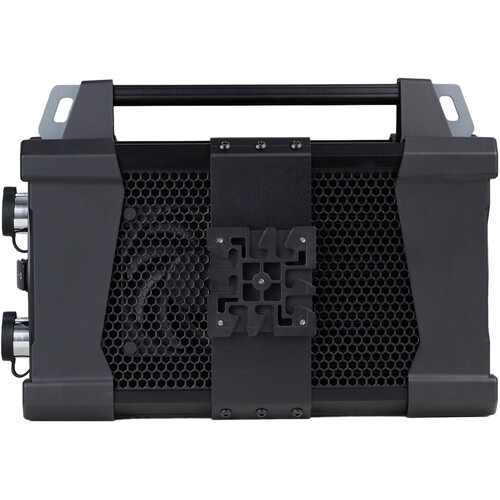

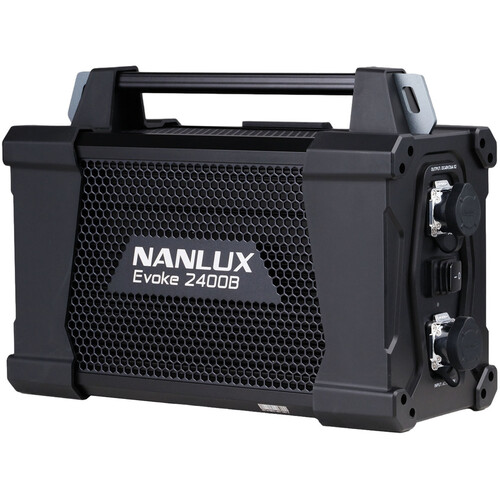

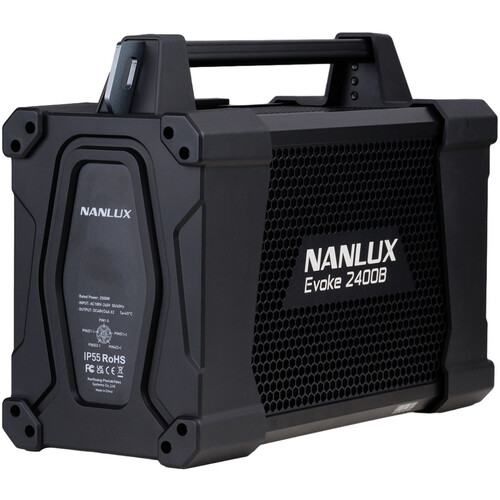

Power Supply/Controller
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
1x Unspecified Remote Input
Power Supply/Controller
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
Input Power
100 to 240 VAC, 50 / 60 Hz
48 VDC at 26 A
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
2400 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
Environmental
Environmental Protection
Water-Resistant (IP55)
General
Display
Yes
Certifications
BIS, CE, FCC-ID, RoHS, UKCA, Kcc, NCC
Dimensions
16.8 x 12.5 x 10.4" / 42.7 x 31.8 x 26.4 cm (Fixture)
Weight
33.1 lb / 15 kg

Resources

Includes

  • Nanlux Evoke 2400B Bi-Color LED Monolight
  • Yoke
  • Power Supply
  • 45° Reflector
  • USB Drive
  • Quick Release Clamp
  • Remote Controller
  • DC Connection Cable (60cm)
  • AC Power Cable (25cm)
  • Nanlux Flight Case for Evoke 2400 and 45° Reflector
  • Nanlux Reflector for Evoke 2400 (45°)
  • Soft Carrying Bag
