Lilliput A7S 7" Full HD Monitor with 4K Supp.

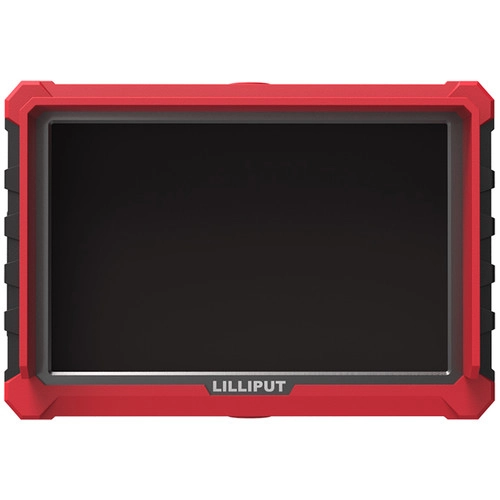

The A7S 7" Full HD Monitor with red rubber case from Lilliput features an HDMI 1.4 input, making it suitable for UHD 4K filmmaking and photography. With a 16:10 aspect ratio and 1000:1 contrast ratio, the LCD panel displays Full HD images. The HDMI loop-through function allows you to output via HDMI to any other compatible device.
Product Details
-
Category:Lilliput
Overview
- 1920 x 1200 Native Resolution
- 500 cd/m² Brightness
- 1000:1 Contrast Ratio
- 170° Viewing Angle
- Red Silicone Rubber Case
- Peaking / False Color / Histogram
- Exposure / Level Meter / Image Flip
- 1/4"-20 and VESA 75 Mounting Options

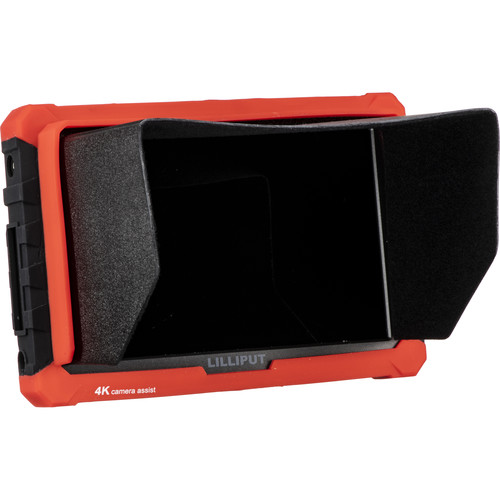

- Sun Hood Included
he A7S 7" Full HD Monitor with red rubber case from Lilliput features an HDMI 1.4 input, making it suitable for UHD 4K filmmaking and photography. With a 16:10 aspect ratio and 1000:1 contrast ratio, the LCD panel displays Full HD images. The HDMI loop-through function allows you to output via HDMI to any other compatible device.

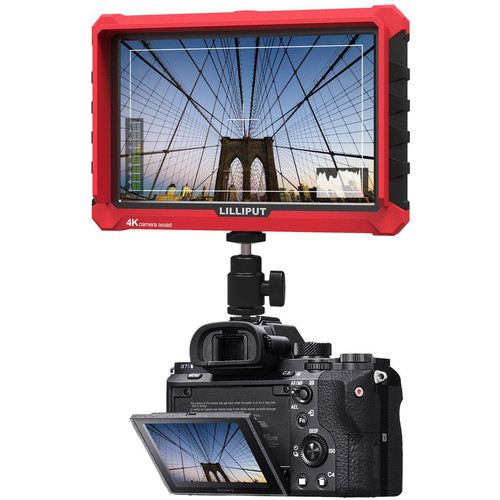

If you have upgraded to the 4K workspace, the A7S offers control over your shooting workflow both in the field and studio. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20 threads at the bottom. You can also use the VESA 75 hole at the back to attach the A7S to other mounts.
Specifications
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Area | 5.94 x 3.74" / 15.1 x 9.5 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 26.25 x 78.75 µm |
| Pixels Per Inch (ppi) | 324 ppi |
| Real-Time LUT Monitoring | No |
| Image Controls | Color Temperature Selection, False Color, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Screen Markers, Underscan |

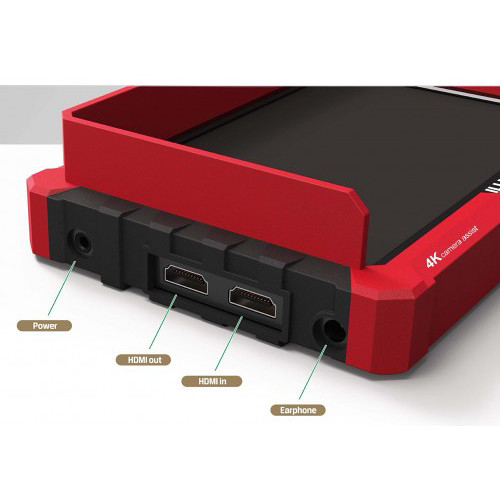

| Video | 1 x HDMI Type A (HDMI 1.4) Input 1 x HDMI Type A (HDMI 1.4) Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Input |
| Built-In Speaker | 1 x 1 W |
| Other I/O | None |
| Media/Memory Card Slot | None |
| Video Format | HDMIRGB UHD 4K: 30 |
| PC Resolutions | 3840 x 2160 4096 x 2160 |
| DC Input Power | 7 to 24 VDC |
| Battery Type | None |
| Power Consumption | 12 W (Maximum) |
| Mounting-Hole Pattern | 75 x 75 mm |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
Resources
Includes
battery plates for Canon LP-E6 and Sony F-970
AC adapter
