Atomos Sumo 19" SE HDR Monitor (T)

Price/Day: EGP. 1500

1920 x 1080 IPS Touchscreen Display - HDMI 2.0 & 12G-SDI Inputs/Outputs - Quad-HD Live Switching & 5-Ch Recording - 1200 cd/m² (±10%) Brightness - ProRes RAW Support - 8-Bit+FRC 422 ProRes/DNxHR Encoding - HDR Mode with 10-Stop Dynamic Range - Two XLR Inputs with +48V

Product Details

Overview

With an upgraded 19" 1920 x 1080 IPS touchscreen display and 1200 cd/m² brightness, the Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher maintains the same 4K recording, monitoring, and switching capabilities of its predecessor with a sharper and brighter display. Four 12G-SDI inputs and one HDMI 2.0 input can receive video signals up to 4K60 and support live quad-channel switching. Five-channel recording captures the input feeds as well as the live switching to create one output video for efficient viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and quad-SDI connections.
Intuitive Interface
The Sumo 19" SE can record in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19" SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19" SE into your studio setup.
SE Upgrades and Features
  • Upgraded 19" IPS display with 1200 cd/m² brightness (±10%)
  • Live, quad-channel HD switching and recording
  • Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
  • HDMI 2.0 and quad-SDI support genlock and LTC timecode
  • Works in HLG and PQ formats of HDR
Live Quad-Channel HD Switching and Recording
  • Record four streams simultaneously as separate ISOs while cueing and switching in real time
  • Record fifth channel of switched feel and display, resulting in mixed output live on set (via HDMI or SDI)
  • Switching is asynchronous and can be output with Atomos Connect 4K
Two XLR Inputs with Phantom Power
  • Full-size XLR connections with +48 phantom power
  • Connect two external microphones for balanced analog audio recording and monitoring
  • Dedicated meters, gain controls, and adjustments for frame delay on each channel
  • Mic or line-level audio can be synced with embedded HDMI and SDI audio
Powering the SE
  • Dual 4-pin XLR inputs for continuous dual-battery power
  • Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
  • Includes AC power supply, 12-16.8 VDC input
  •

Specifications

Key Specs
Display Size
19.00" / 48.3 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
Yes, Hybrid Log Gamma
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
4x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
Media/Memory Card Slot
No
Video Format
HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
Phantom Power
+48 V
Built-In Battery
No
Battery Type
2x V-Mount, Gold Mount
Power Consumption
75 W
Mounting
10x 1/4"-20 Female
5x 3/8"-16 Female
Display
Panel Type
IPS-Type LCD
Display Size
19.00" / 48.3 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1200 nits / cd/m2
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
120 ppi
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

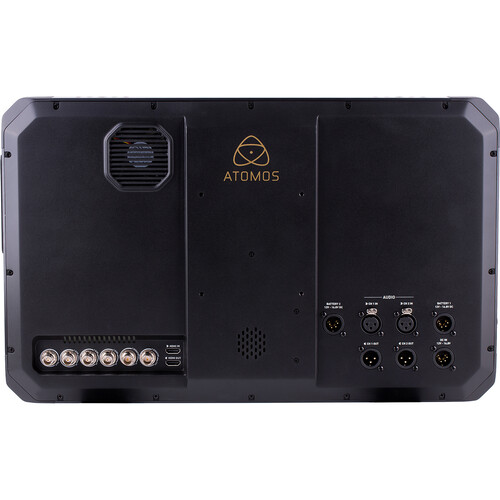

Inputs / Outputs
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
4x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
Embedded Audio
HDMI: 8-Channel
SDI: 12-Channel
Audio I/O
2x XLR Input
2x XLR Output
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
2x XLR 4-Pin (14.4 VDC) Input
1x XLR 4-Pin (16.8 VDC) Input
Other I/O
1x BNC (Genlock) Input
1x 2.5 mm (LANC) Input
Media/Memory Card Slot
No
File System Support
exFAT
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
Gamma Curve
DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
Video Signal Conversion
HDMI to SDI

SDI to HDMI
Timecode Support
Yes
Recording
Pulldown Conversion
2:2, 3:2
Camera Trigger
SDI, HDMI
Pre-Roll Record
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats
x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit
Closed Caption Support
No
Reference Input
No
Phantom Power
+48 V
Power
Input Power
12 to 16.8 VDC
Built-In Battery
No
Battery Type
2x V-Mount, Gold Mount
Power Consumption
75 W
Mounting
Mounting-Hole Pattern
100 x 100 mm
Mounting
10x 1/4"-20 Female
5x 3/8"-16 Female
General
Material of Construction
Aluminum, Polycarbonate
Dimensions
19.8 x 13 x 7.1" / 504 x 330 x 180 mm (Including Feet)
19.8 x 12.2 x 2.5" / 504 x 310 x 63 mm (Excluding Feet)
Weight
12.02 lb / 5.45 kg

Resources

Atomos Official Website

Includes

Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
BattWing Mounting Bracket
IndiPRO Tools V-Mount Plate & D-Tap Cable Set for Atomos Sumo Monitor
Atomos Sunhood for Sumo 19" Monitor
Atomos Anti-Glare LCD Screen Protector for Sumo 19" Monitor
Generic Heavy Duty 19" Monitor Cage Mount
Generic Fly Case for Atomos Sumo 19"
Generic Baby Leg Stand for Atomos Sumo 19"
AC Power Adapter for Atomos Sumo 19"
AC Power Cable for Atomos Sumo 19"

Price/Day : 1500
